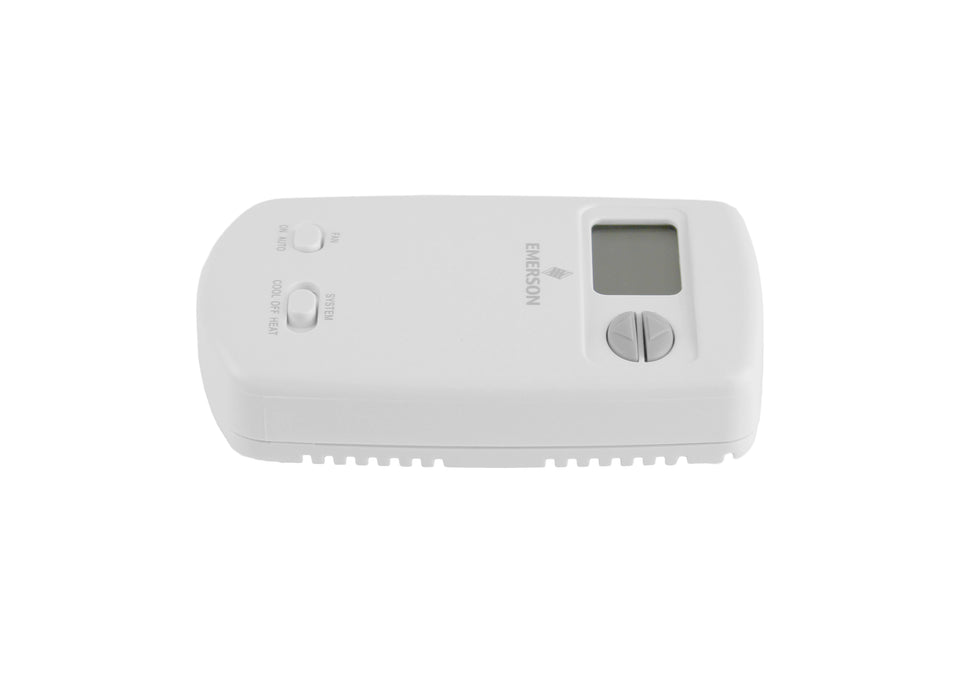

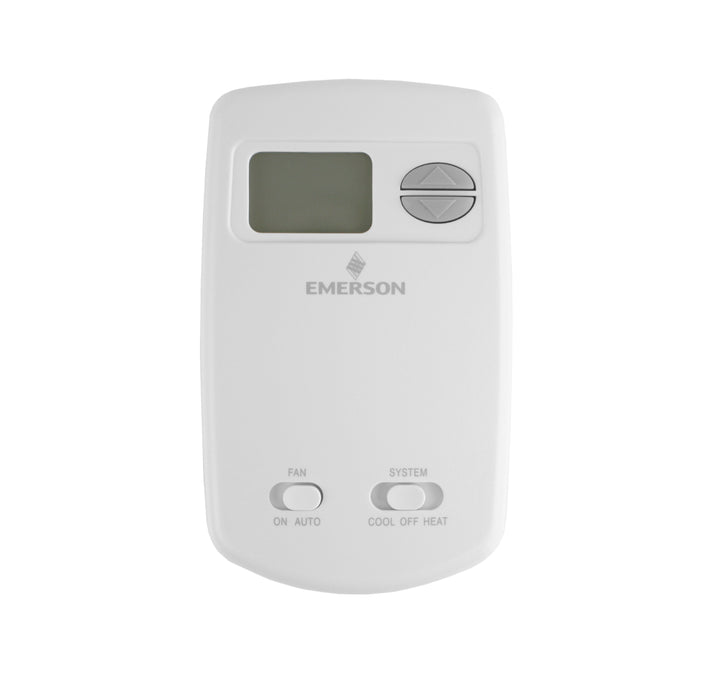

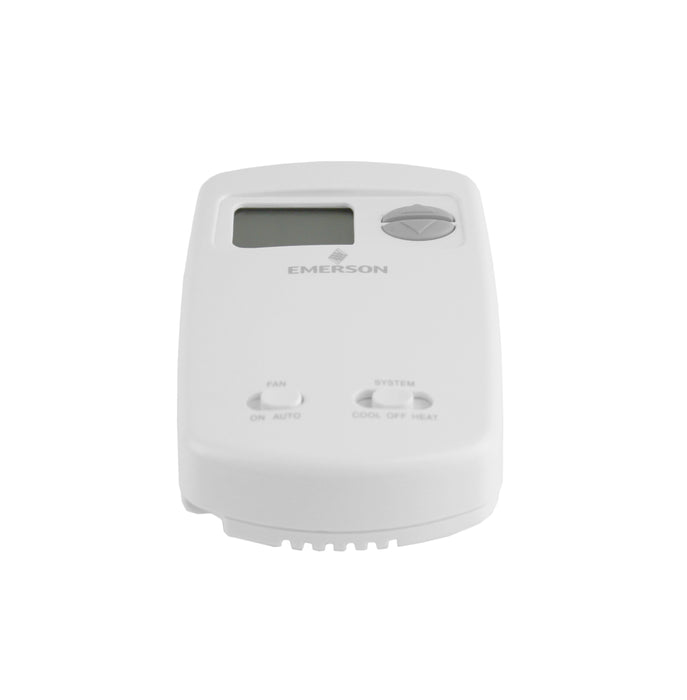

White-Rodgers 70 Series Non-Programmable Thermostat, 1 Heat / 1 Cool, Vertical - 1E78-144
Make everyday temperature changes a simple adjustment. The White-Rodgers 70 Series 1E78-144 controls one stage of heating and one stage of cooling in compatible conventional systems or heat pumps without auxiliary heat. Its vertical digital design offers direct, non-programmable temperature control without setting a weekly schedule.

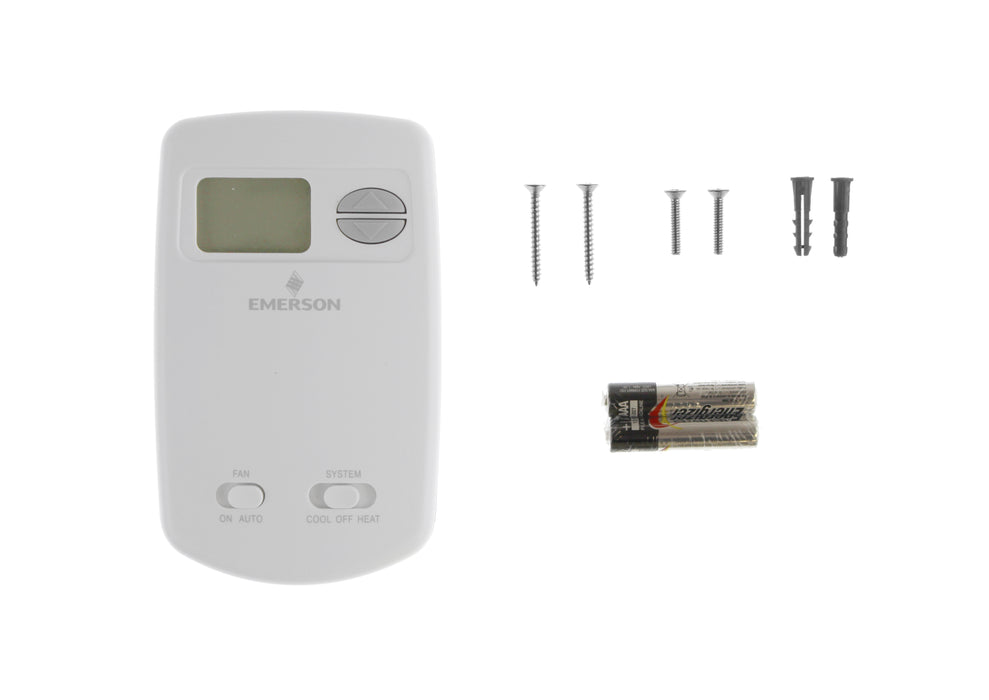

What you receive: One White-Rodgers 1E78-144 thermostat.
Installation: Match system voltage, heating and cooling stages, and terminal functions to the installation manual. Disconnect system power before wiring and have a qualified HVAC technician install and configure the control when needed.
Pro Tip: Label each wire by its existing terminal designation before disconnecting it. Wire color alone does not identify the correct connection.
Technical Specifications
| Part Number | 1E78-144 |
|---|---|
| Brand | White-Rodgers Division |
| Product Type | Digital room thermostat |
| Stages | 1 heat / 1 cool |
| System Types | Compatible conventional systems; heat pumps without auxiliary heat |
| Programming | Non-programmable |
| Orientation | Vertical |
| Power | Battery |
| Setpoint Range | 45-90 degrees F |
| Dimensions | 3-3/16 in W x 5-5/16 in H x 1-1/8 in D |
| Battery Type | 2 AAA alkaline batteries |

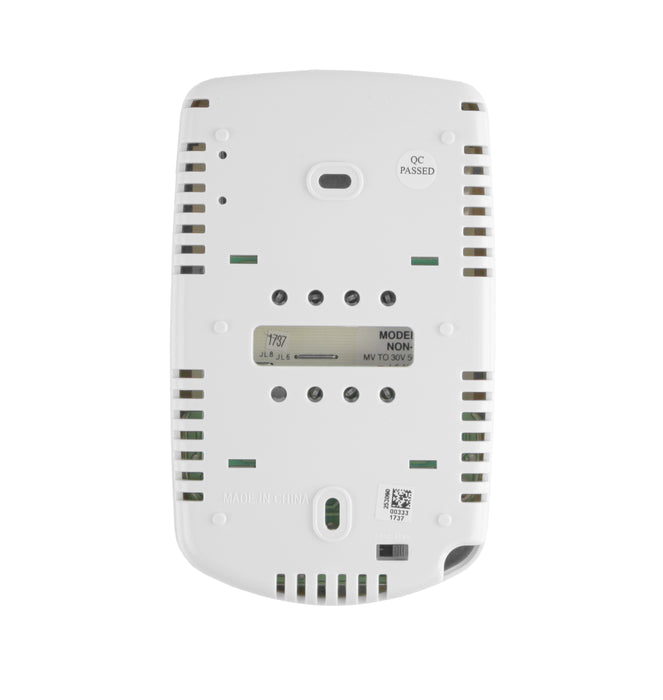

| Terminals | RC, RH, W, Y, O, B, G |
| Package Contents | One White-Rodgers 1E78-144 thermostat. |
