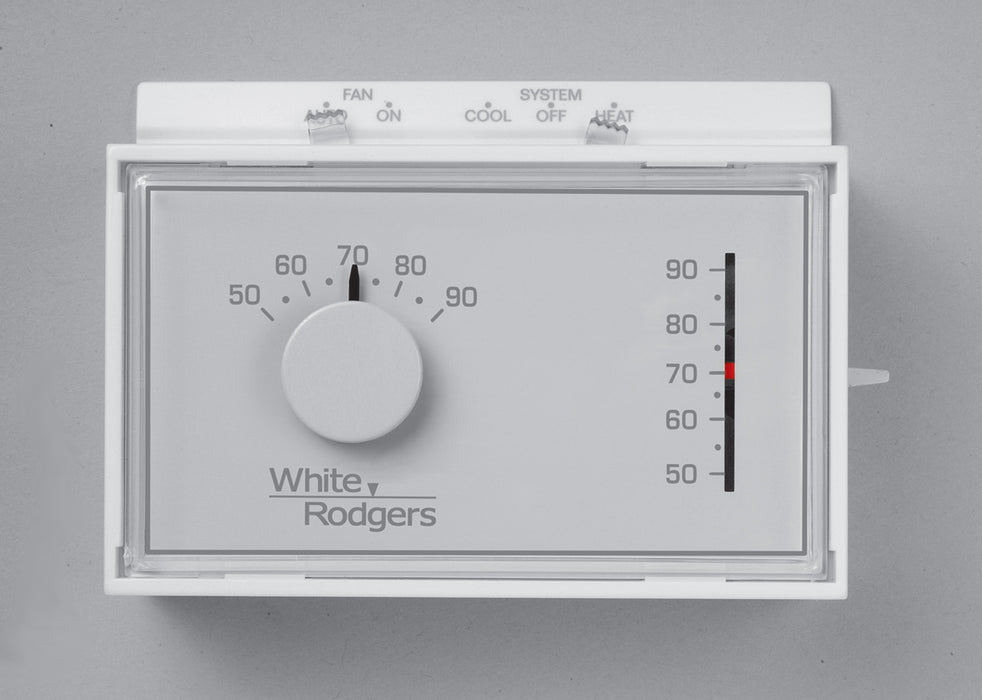

White-Rodgers Mechanical Thermostat, 1 Heat / 1 Cool, Horizontal - 1F56N-444
Choose mechanical heat-and-cool control with a familiar feel. The White-Rodgers 1F56N-444 provides single-stage heating and cooling control with a mercury-free snap-action switch and a built-in bimetal thermometer. Its horizontal mechanical design suits compatible gas, oil or electric systems and heat pumps without auxiliary heat.
What you receive: One White-Rodgers 1F56N-444 mechanical thermostat.
Installation: Match system voltage, heating and cooling stages, and terminal functions to the installation manual. Disconnect system power before wiring and have a qualified HVAC technician install and configure the control when needed.
Pro Tip: Have the installer set the adjustable heat anticipator to the system requirements. Correct setup helps the mechanical control cycle as intended.
Technical Specifications
| Part Number | 1F56N-444 |
|---|---|
| Brand | White-Rodgers Division |
| Product Type | Mechanical heat/cool thermostat |
| Stages | 1 heat / 1 cool |
| Control | Mercury-free snap-action switch |
| Thermometer | Bimetal |
| Orientation | Horizontal |
| Electrical Application | Millivolt to 30 VAC |
| Programming | Non-programmable |
| Heat Anticipator | Adjustable |
| Terminals | RC, RH, W, Y, O, B, G, A |
| Package Contents | One White-Rodgers 1F56N-444 mechanical thermostat. |
