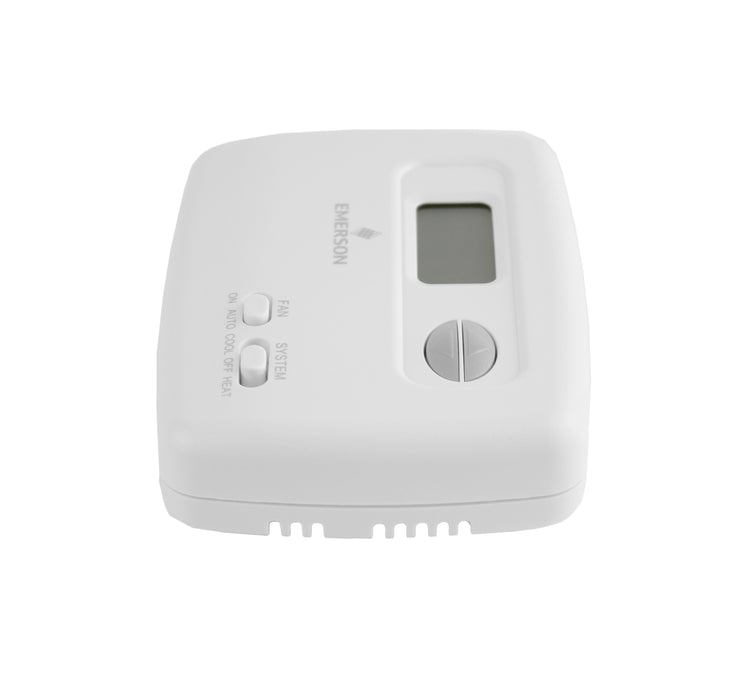

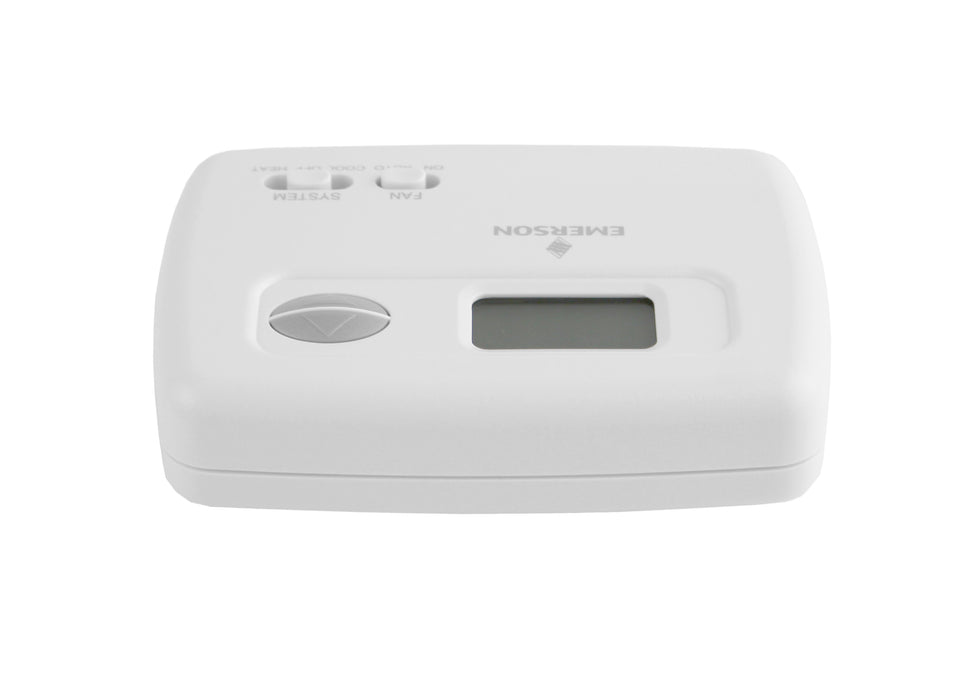

White-Rodgers 70 Series Non-Programmable Thermostat, 1 Heat / 1 Cool, Horizontal - 1F78-144

Original price $51.60 - Original price $51.60
Original price
$51.60
$51.60 - $51.60
Current price $51.60

Make everyday temperature changes a simple adjustment. The White-Rodgers 70 Series 1F78-144 controls one stage of heating and one stage of cooling in compatible conventional systems or heat pumps without auxiliary heat. Its horizontal digital design offers direct, non-programmable temperature control without setting a weekly schedule.

What you receive: One White-Rodgers 1F78-144 thermostat.

Installation: Match system voltage, heating and cooling stages, and terminal functions to the installation manual. Disconnect system power before wiring and have a qualified HVAC technician install and configure the control when needed.

Pro Tip: Label each wire by its existing terminal designation before disconnecting it. Wire color alone does not identify the correct connection.

Technical Specifications

Part Number 1F78-144
Brand White-Rodgers Division
Product Type Digital room thermostat
Stages 1 heat / 1 cool
System Types Compatible conventional systems; heat pumps without auxiliary heat
Programming Non-programmable
Orientation Horizontal

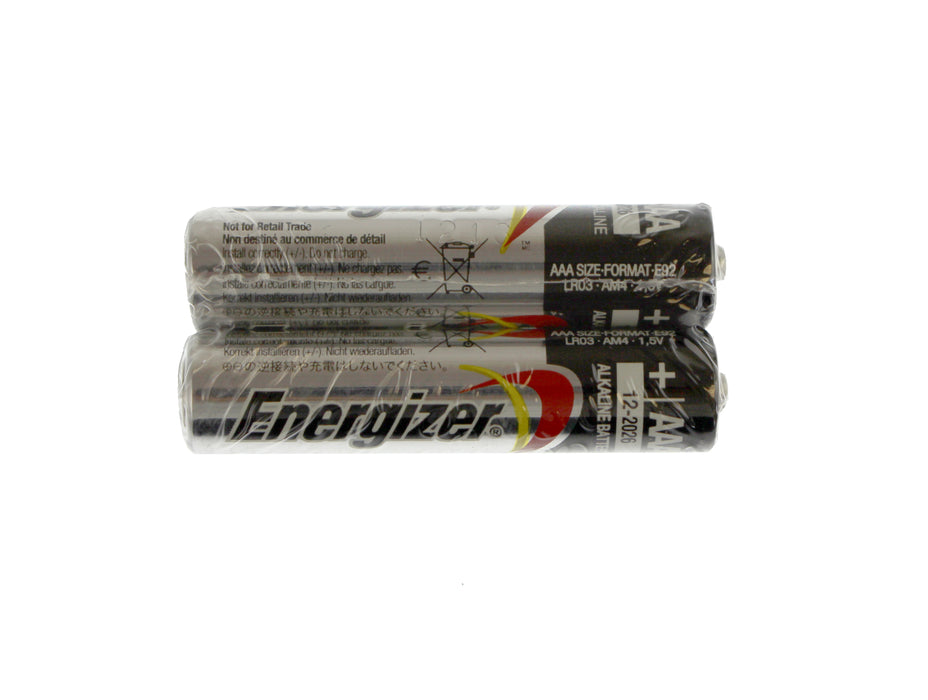

Power Battery
Setpoint Range 45-90 degrees F
Dimensions 5-1/8 in W x 3-13/16 in H x 1-1/8 in D

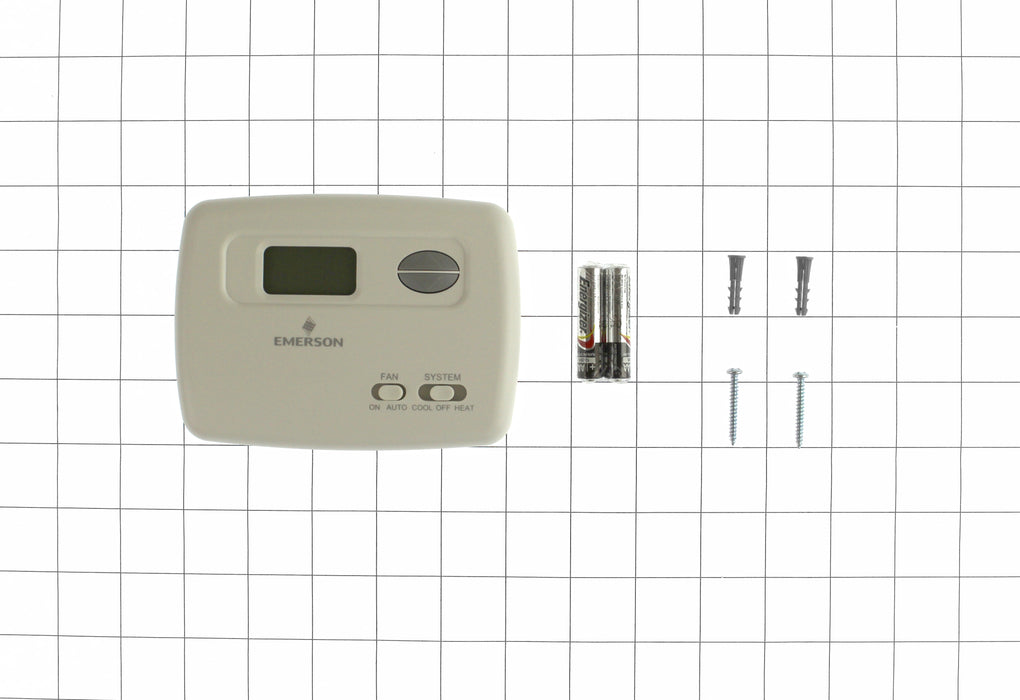

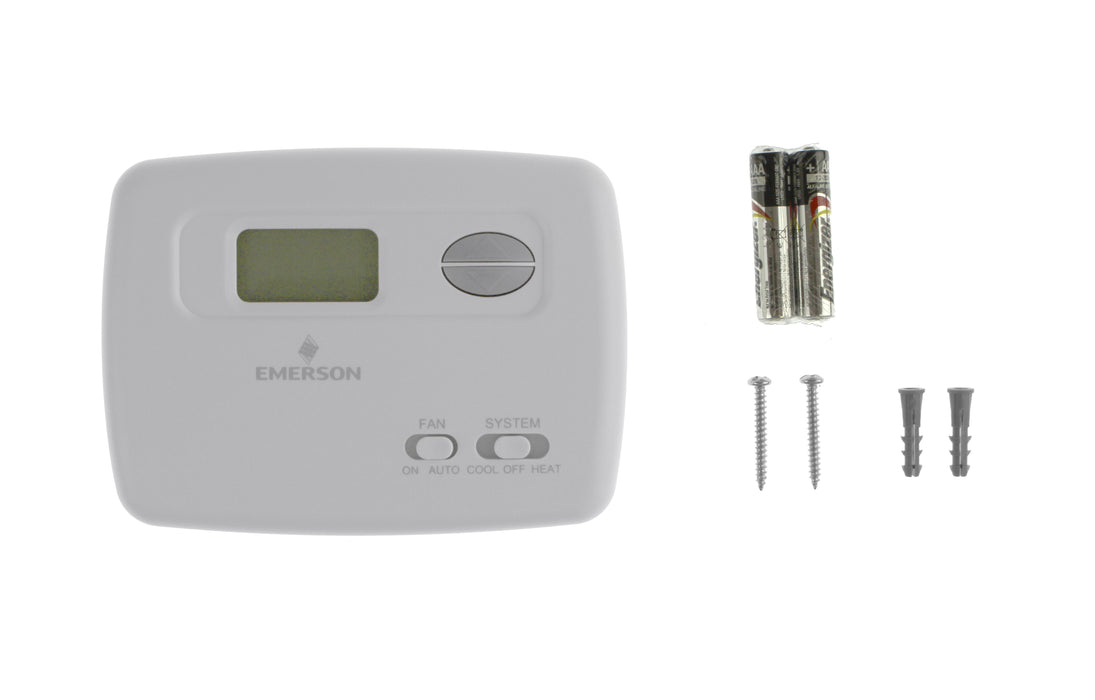

Package Contents One White-Rodgers 1F78-144 thermostat.
Brand

WHITE-RODGERS DIVISION
