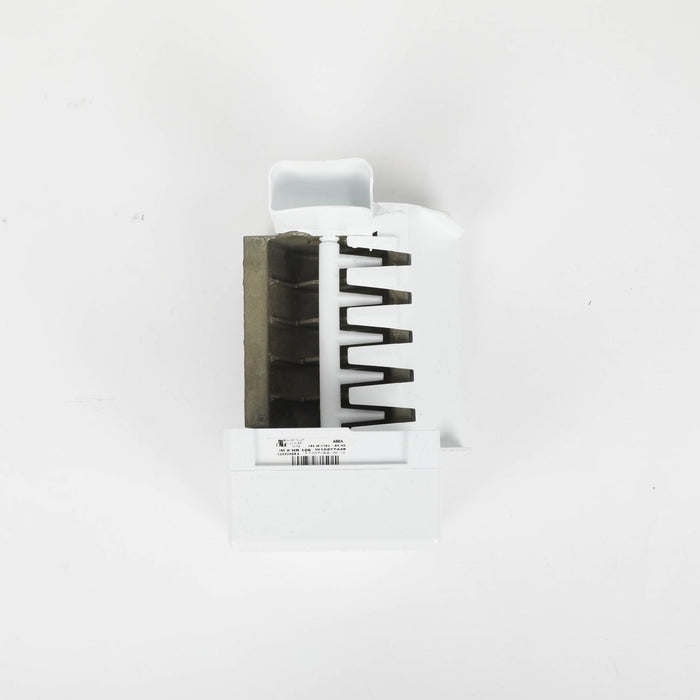

Whirlpool WPW10277449 5-Cube In-Door Ice Maker

Whirlpool WPW10277449 5-Cube In-Door Ice Maker

Genuine Whirlpool five-cube ice maker assembly for compatible In-Door-Ice refrigerator systems, including select KitchenAid applications. Replaces the matching ice-making unit.

Replacement references: W10277449, W10190970, 2320637, 2306089, 2300198. Confirm the replacement against your appliance model before ordering.

Will this fit my appliance? Verify the full refrigerator model and the five-cube in-door configuration. Compare the harness and mounting; an eight-cube ice maker is not an automatic substitute, even when the appliance brand matches.

Before replacing the ice maker: Confirm the ice maker is enabled, the water supply is available and the freezer is cooling correctly. No ice or small cubes can also result from a restricted filter, water valve or fill tube; those symptoms alone do not prove the assembly has failed.

How to find your model number: Look for the rating label inside the refrigerator or freezer compartment, often on a side wall or door frame. Copy the full model number, including its suffix. If you are unsure, contact us with that information before ordering.
