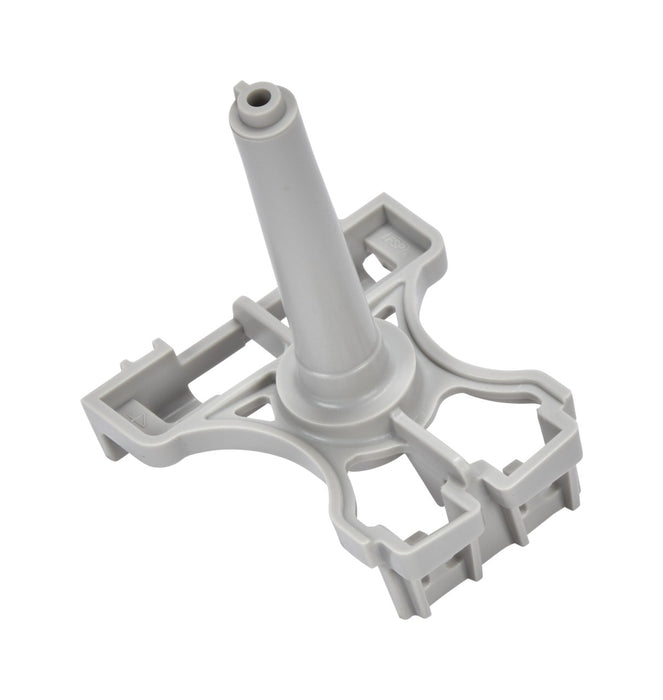

Whirlpool WP8539324 Dishwasher Upper Rack Spray Arm Mount

Whirlpool WP8539324 Dishwasher Upper Rack Spray Arm Mount

Secure the upper-rack spray arm with Whirlpool WP8539324. The redesigned mount attaches at the upper dishrack and replaces older mount arrangements. It is a mounting component, not a replacement rotating spray arm.

Fits These Brands / Families: Select Whirlpool, KitchenAid, Kenmore, Inglis dishwashers where the model-specific parts diagram specifies WP8539324.

Replaces: 8539324, 8268844, 962126, 9742994. Verify manufacturer substitution and your complete model number before ordering.

Compatible Model Examples: Whirlpool DU1000CGB1, DU1020XTLB0, GU1101XTLQ0; KitchenAid KUDS25SHBL1; Kenmore 66515734000. Examples only, not a complete fitment list.

Fitment / What To Verify: Mount/support only; upper wash arm is not included. Redesigned version clips to the rack without the former retainer or screw. Compare the original part, its location and mount style with the model-specific diagram.

Is it time to replace?

• Common Symptoms: Loose upper wash arm, broken mounting tabs, rattling or reduced cleaning from poor spray-arm support.
• Before ordering: Clear any food debris from spray openings and check the connected supports for damage.

Technical Specifications

How to find your model number: Open the dishwasher door and check the label on the door edge or tub frame. Match the full model number and revision with the parts diagram before purchase.
