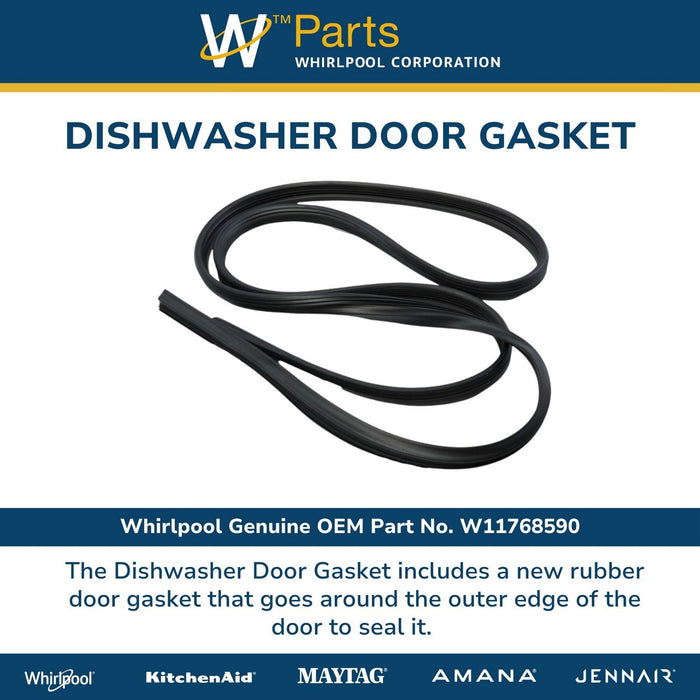

Whirlpool W11768590 Dishwasher Door Gasket - OEM
Whirlpool W11768590 Dishwasher Door Gasket - OEM
Renew the seal around the tub opening on a compatible Whirlpool-built dishwasher with genuine OEM door gasket W11768590. This service replacement covers the listed older gasket numbers and helps contain wash water when a worn perimeter seal no longer contacts the door correctly.
Model compatibility: Whirlpool WDT730PAHZ0 and WDF520PADM7 are verified examples. The complete model number and final revision digit are required to confirm other applications.
Replaces / legacy numbers: W10524469, WPW10524469, W11425053, W11498831, W11683628, W11725437 and W11758955.
Is it time to replace?
- Inspect a split, loose or flattened gasket when water escapes around the closed door.
- Check the gasket channel and mating door surface; a separate bottom seal can cause lower-edge leaks.
Technical Specifications
| Part Number | W11768590 |
| Brand | Whirlpool - genuine OEM |
| Product Type | Perimeter door gasket |
| Appliance Application | Dishwasher |
| Position / Application | Dishwasher tub opening |
| Package Contents | One door gasket |
How to find your model number: Open the door and read the label on the door edge or tub frame. Match the complete model, suffix and parts diagram before ordering.
Brand
WHIRLPOOL CORP
