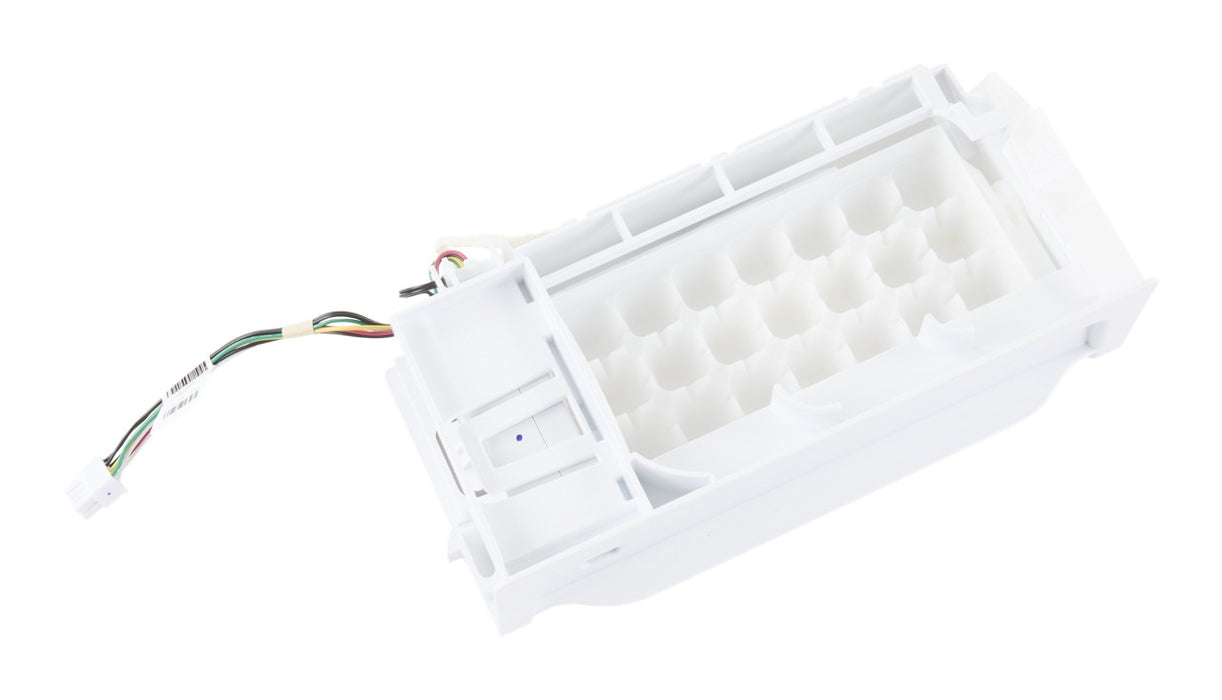

Whirlpool W11557000 Refrigerator Ice Maker Assembly

Whirlpool W11557000 Refrigerator Ice Maker Assembly

Genuine Whirlpool replacement refrigerator ice maker assembly for supported models. Designed to replace the existing ice-making unit rather than add an ice maker to a refrigerator that was not equipped for it.

Replacement references: W11414320, W11391033, W11026493, W11099789. Confirm the replacement against your appliance model before ordering.

Will this fit my appliance? Check your complete refrigerator model and original service-part number. Confirm the mounting and harness connection; a shared W115570 prefix does not make this interchangeable with W11557002.

Before replacing the ice maker: Confirm the ice maker is enabled, the water supply is available and the freezer is cooling correctly. No ice or small cubes can also result from a restricted filter, water valve or fill tube; those symptoms alone do not prove the assembly has failed.

How to find your model number: Look for the rating label inside the refrigerator or freezer compartment, often on a side wall or door frame. Copy the full model number, including its suffix. If you are unsure, contact us with that information before ordering.

Is it time to replace?

• Common Symptoms: The ice maker stops producing or ejecting ice after the water supply and freezer temperature are checked.
• Visible/Sensory Cues: Broken ice tray, damaged ejector components or visible assembly damage.

Pro Tip: Check freezer cooling, the inlet valve and the water line first. Similar symptoms do not establish that the ice maker is defective.

Technical Specifications
