Whirlpool W11397192 KitchenAid/JennAir Ice Maker Assembly

Whirlpool W11397192 KitchenAid/JennAir Ice Maker Assembly

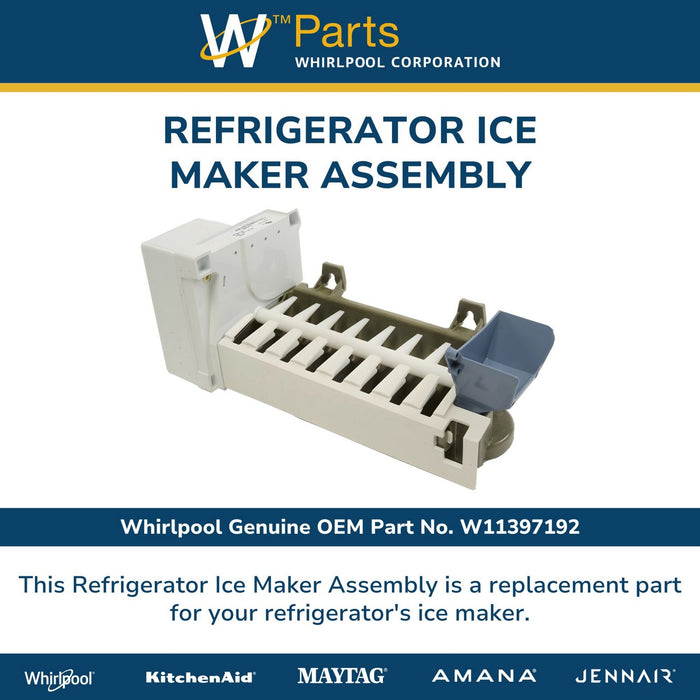

Genuine Whirlpool-manufactured refrigerator ice maker assembly for select KitchenAid and JennAir built-in refrigerator applications. Replaces the supported earlier ice-making assembly.

Replacement references: W11084540, W10645967, W10645968, W10913630, W11238143. Confirm the replacement against your appliance model before ordering.

Will this fit my appliance? Cataloged examples include KitchenAid KBFN506ESS01, KBFN502EPA02 and JennAir JB36NXFXLE01. Match the complete model revision. Similar built-in refrigerator series can use different assemblies in later production.

Before replacing the ice maker: Confirm the ice maker is enabled, the water supply is available and the freezer is cooling correctly. No ice or small cubes can also result from a restricted filter, water valve or fill tube; those symptoms alone do not prove the assembly has failed.

How to find your model number: Look for the rating label inside the refrigerator or freezer compartment, often on a side wall or door frame. Copy the full model number, including its suffix. If you are unsure, contact us with that information before ordering.
