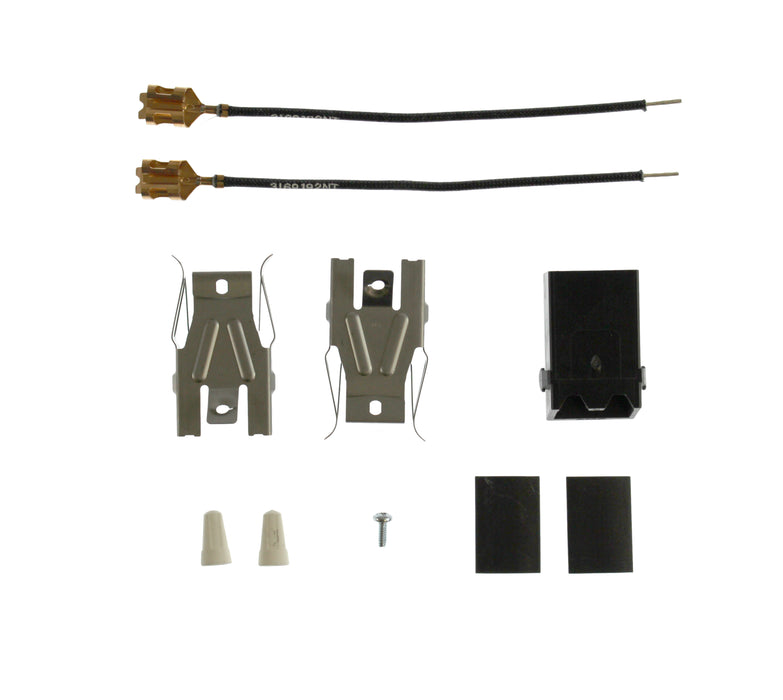

Whirlpool Range Surface Element Receptacle and Wire Kit - 330031

Whirlpool Range Surface Element Receptacle and Wire Kit - 330031

Restore a safe, reliable electrical connection with this genuine OEM Whirlpool Range Surface Element Receptacle and Wire Kit. This range surface element receptacle and wire kit provides the correct high-current connection point between the appliance wiring and the surface element or power circuit.

330031 is a genuine OEM Whirlpool Range Surface Element Receptacle and Wire Kit used when the original component fails or no longer performs correctly.

Fits These Brands / Families: Select Whirlpool range models that list 330031 as the correct service part.

This part commonly replaces previous part numbers including W10841094, W10116803, 5303935058, 12001673, 330031A, and 868464.

Fitment / What To Verify: Match the exact element/application, receptacle or terminal style, wire gauge/terminal layout, mounting, and model. Replace heat-damaged terminals and wiring rather than connecting a new receptacle to burned conductors.

Please confirm fitment with your appliance model number before ordering.

Is it time to replace?

• Common Symptoms: Element is intermittent or dead, connector overheats, terminal is loose, or heat damage is visible at the wiring connection.
• Visible/Sensory Cues: Burned or melted receptacle, darkened terminal, brittle insulation, loose spade connection, or pitted contact surfaces.

Pro Tip: Disconnect power and replace heat-damaged wire terminals as well as the receptacle or block. A loose connection can quickly damage a new part.

Technical Specifications
