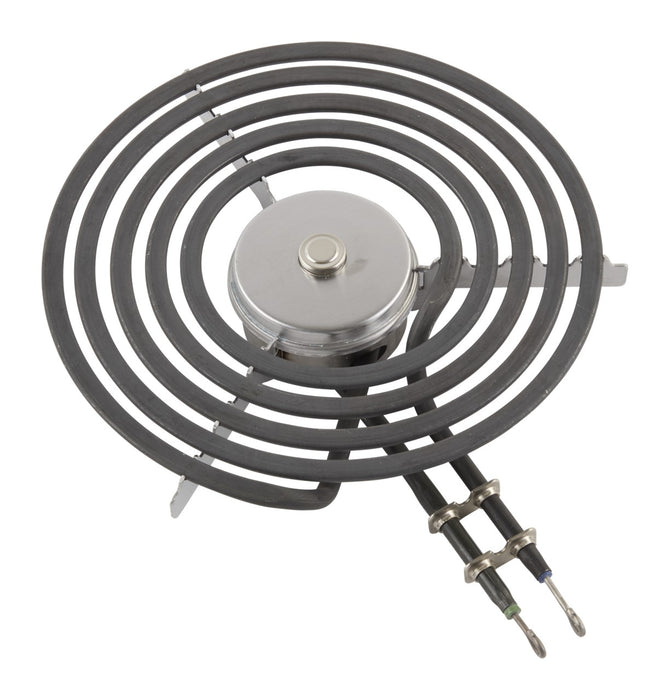

Whirlpool Range Coil Surface Element - W11396790

Whirlpool Range Coil Surface Element - W11396790

Restore cooktop surface heating with this genuine OEM Whirlpool Range Coil Surface Element. This part produces controllable heat at the specified cooktop burner position so cookware can reach the selected temperature.

W11396790 is a genuine OEM Whirlpool Range Coil Surface Element. Because visually similar service parts can differ by model revision, connector, mounting, or specification, confirm the exact model before installation.

Compatibility: Designed for select Whirlpool range / oven models that specify W11396790 in the service parts list. Model-number verification is required.

Fitment / What To Verify: Match element diameter, wattage/rating, coil or radiant/Sensi-Temp design, terminal or plug style, and mounting. A same-size element can still be electrically or mechanically different.

Please confirm fitment with your appliance or equipment model number before ordering.

Is it time to replace?

• Common Symptoms: Surface burner will not heat, heats unevenly, cycles abnormally, or diagnosis confirms an open/failed element.
• Visible/Sensory Cues: Cracked or blistered radiant surface, broken coil, burned terminal, hot spot, warping, or open continuity.

Pro Tip: Match element diameter, wattage/rating, limiter or connector style, mounting and model exactly; inspect the receptacle/switch and heat-damaged wiring before installing the new element.

Technical Specifications
