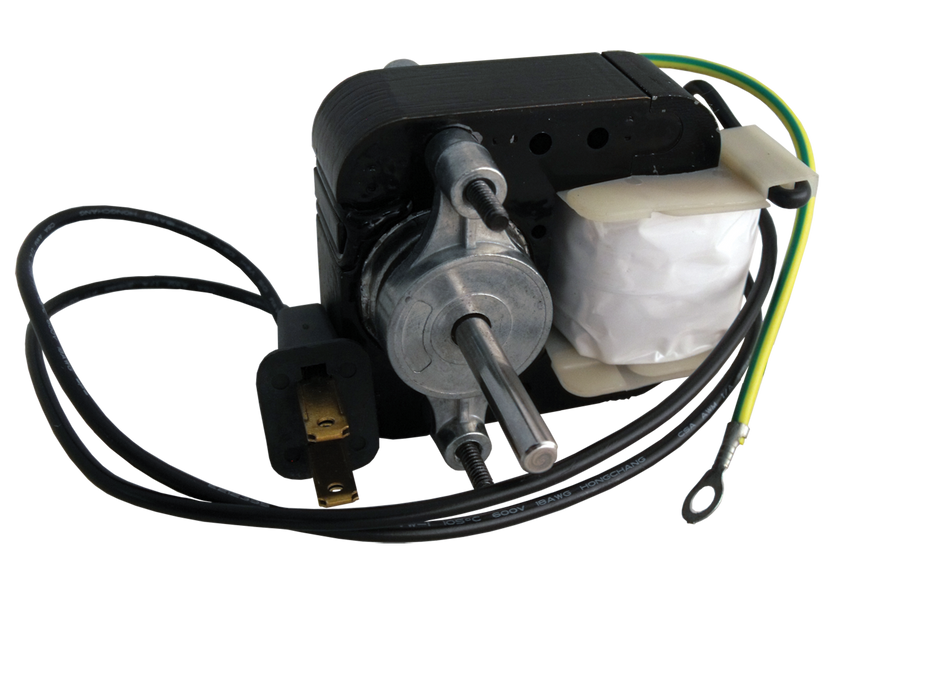

Supco SM552 Range Hood Vent Fan Motor
Supco SM552 Range Hood Vent Fan Motor
Replace a failed range hood vent motor with Supco SM552, a single-speed replacement motor for select NuTone range hood ventilators, including 9415 and 9425 series applications. A humming or non-running fan can also result from the switch, wiring, capacitor, or binding blower wheel; diagnose the hood before replacing the motor.
Technical Specifications
| Part number | SM552 |
|---|---|
| Brand | Supco |
| Product type | Single-speed range hood vent fan motor |
| Electrical rating | 120VAC |
| Speed | 3000 RPM |
| Rotation | Counterclockwise, shaft end |
| Shaft | 7/32 in flat shaft; 1-1/4 in shaft length |
| Compatible series | Select NuTone 9415 and 9425 series range hood ventilators; verify model |
| Cross-reference numbers | K113, VFM103, 33-103, C63675, 63675000, EM552, 65103 |
Service and installation: Disconnect power before service. Match the plug, mounting, shaft, rotation, and blower-wheel fit before installation. Transfer wiring and hardware only as specified for the hood, secure the motor, then check for free wheel rotation and abnormal vibration before normal use.
How to find your model number: Check the rating label inside the hood, behind the grease filter, or on the cabinet. Use the complete model number and compare the original motor part number, shaft, mounting, and connector before ordering.
