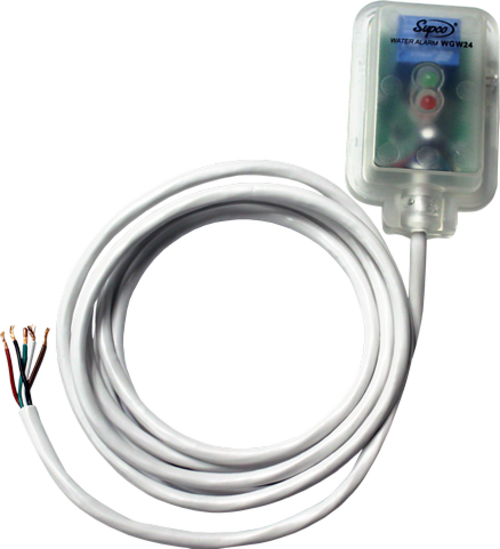

Supco Electronic Condensate Water Overflow Alarm - WGW24
Supco Electronic Condensate Water Overflow Alarm - WGW24
Help protect compatible HVAC condensate systems from water damage with an electronic overflow switch that can shut down the system and send a signal to an external alarm when a water-leak condition is detected.
Fitment guidance: Designed for low-voltage HVAC/R condensate-pump applications. This is not a plug-in, standalone whole-home water alarm: confirm the system control voltage, wiring method, condensate-pump arrangement, alarm connection, and installation location before ordering.
Technical Specifications
| Specification | Details |
|---|---|
| SKU / part number | WGW24 |
| Product type | Electronic condensate water overflow alarm / switch |
| Brand | Supco |
| Application | HVAC/R condensate systems; use with condensate pump as added safety mechanism |
| Supply voltage | 18 to 30 VAC |
| Maximum contact current | 5 A at 24 VAC/VDC |
| Wire length | 6 ft |
| Power consumption | 0.5 W |
| Indicators | Green normal; red alarm condition |
| Housing | Hermetically sealed and waterproof |
Service and safety: Disconnect power before wiring. A qualified HVAC technician should install and test the switch, shutdown circuit, and external alarm connection. Correct the source of any condensate leak before restoring operation; do not bypass a safety shutdown device.
How to find your model number: Find the HVAC equipment and condensate-pump model numbers on their rating labels. Match the control voltage, wiring diagram, drain-pan or pump configuration, and WGW24 specifications before installation.
