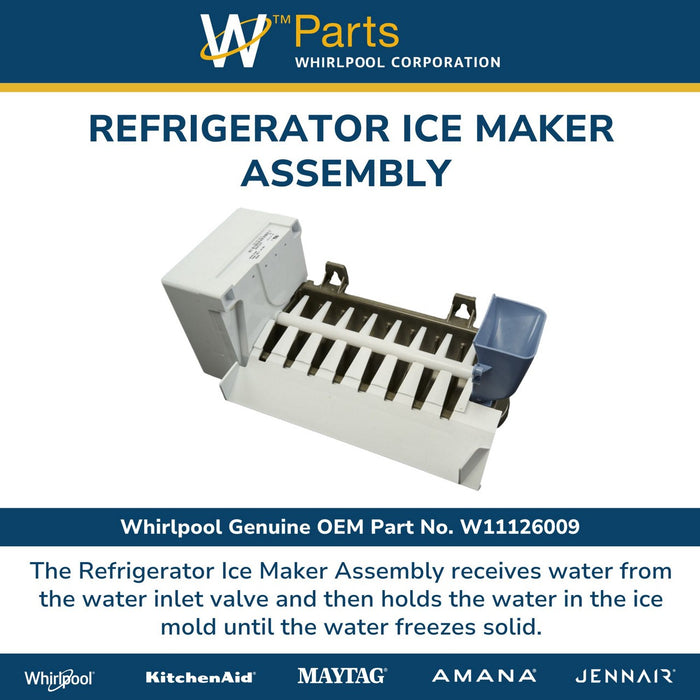

KitchenAid W11126009 Refrigerator Ice Maker Assembly

KitchenAid W11126009 Refrigerator Ice Maker Assembly

Genuine Whirlpool-manufactured complete ice maker assembly for select KitchenAid refrigerators. Replaces a failed ice-making assembly in the supported refrigerator configuration.

Replacement reference: W10774430. Confirm the replacement against your appliance model before ordering.

Will this fit my appliance? Cataloged KitchenAid examples include KBSD608ESS00, KBSD608EBS00 and KSSC48QVS10. Check every character in the model number; a similar cabinet width or model prefix does not establish compatibility.

Before replacing the ice maker: Confirm the ice maker is enabled, the water supply is available and the freezer is cooling correctly. No ice or small cubes can also result from a restricted filter, water valve or fill tube; those symptoms alone do not prove the assembly has failed.

How to find your model number: Look for the rating label inside the refrigerator or freezer compartment, often on a side wall or door frame. Copy the full model number, including its suffix. If you are unsure, contact us with that information before ordering.

Is it time to replace?

• Common Symptoms: The ice maker stops producing or ejecting ice after the water supply and freezer temperature are checked.
• Visible/Sensory Cues: Broken ice tray, damaged ejector components or visible assembly damage.

Pro Tip: Check freezer cooling, the inlet valve and the water line first. Similar symptoms do not establish that the ice maker is defective.
