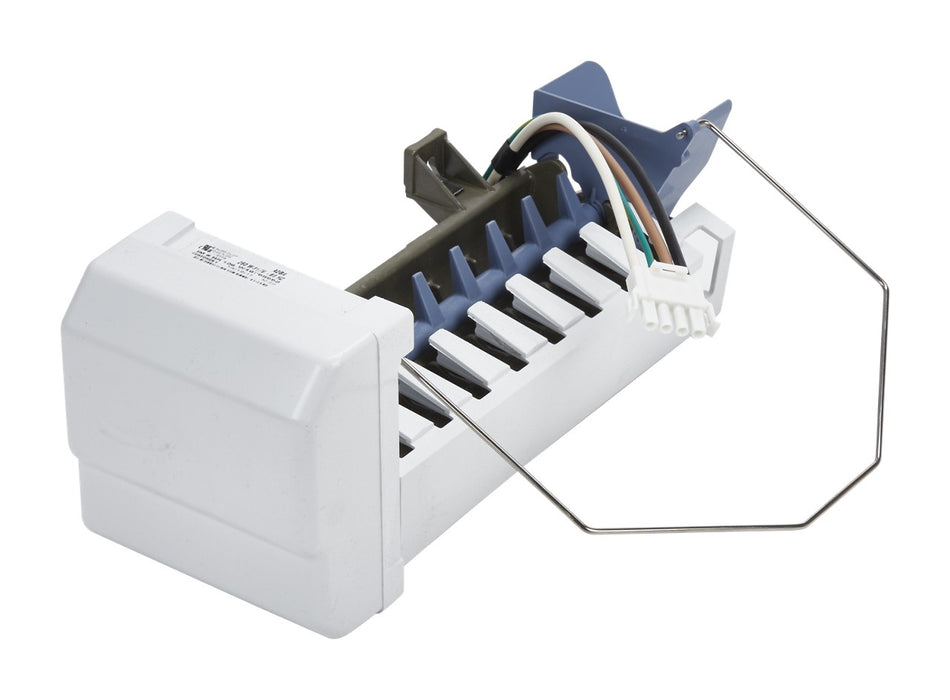

KitchenAid W10889233 Refrigerator Ice Maker Assembly

KitchenAid W10889233 Refrigerator Ice Maker Assembly

Genuine Whirlpool-manufactured ice maker for select KitchenAid refrigerators. Includes an ice-sensing arm and a four-wire connector harness.

Replacement reference: W10795988. Confirm the replacement against your appliance model before ordering.

Will this fit my appliance? Cataloged KitchenAid examples include KFCS22EVMS8, KRFC302EPA02 and KRFC302ESS03. Match the complete model suffix, harness and mounting. This listing should not be selected merely because your refrigerator has an in-door ice dispenser.

Before replacing the ice maker: Confirm the ice maker is enabled, the water supply is available and the freezer is cooling correctly. No ice or small cubes can also result from a restricted filter, water valve or fill tube; those symptoms alone do not prove the assembly has failed.

How to find your model number: Look for the rating label inside the refrigerator or freezer compartment, often on a side wall or door frame. Copy the full model number, including its suffix. If you are unsure, contact us with that information before ordering.

Is it time to replace?

• Common Symptoms: The ice maker stops producing or ejecting ice after the water supply and freezer temperature are checked.
• Visible/Sensory Cues: Broken ice tray, damaged ejector components or visible assembly damage.

Pro Tip: Check freezer cooling, the inlet valve and the water line first. Similar symptoms do not establish that the ice maker is defective.
