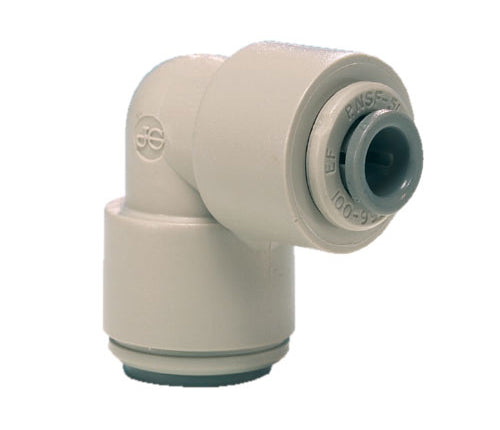

John Guest Refrigerator Water Line Reducing Elbow, 3/8 x 1/4 Inch OD - PI211208S-US

John Guest Refrigerator Water Line Reducing Elbow, 3/8 x 1/4 Inch OD - PI211208S-US

Route a water line through a tight turn with this John Guest reducing elbow. Connects 3/8-inch OD tubing to 1/4-inch OD tubing at a 90-degree bend. The push-fit ports grip and seal approved tubing without a compression nut at the tubing ends.

Compatibility: Compatible refrigerator ice maker and water dispenser supply lines, filtration systems and other potable-water applications.

Includes: One fitting. Tubing and other installation parts are separate. This is an individual part, not a complete installation kit.

Fitment / What To Verify: Measure the outside diameter of both tubes and match the elbow angle layout. Use tubing approved by John Guest and stay within the fitting's pressure and temperature limits. Tubing sizes are outside diameter, not inside diameter.

Confirm tubing size, connection type and application before ordering.

Installation: Leave enough straight tubing at each port to seat it fully; avoid pulling the tubing sideways around the bend.

Technical Specifications
