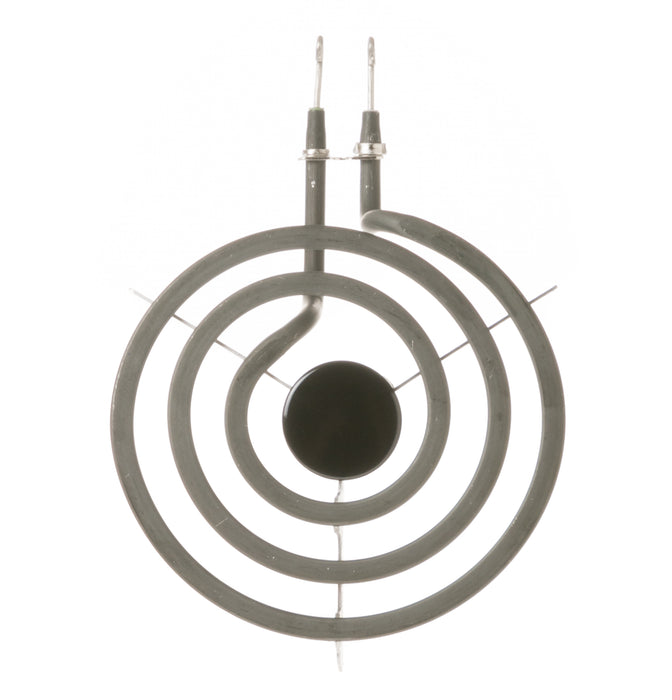

GE Appliances Range 6-Inch 1250W Coil Surface Element - WB30X254

GE Appliances Range 6-Inch 1250W Coil Surface Element - WB30X254

Restore heat to a small electric range burner with this genuine OEM GE Appliances 6-inch coil surface element. Its looped or rolled terminal ends connect to the matching receptacle used on select older ranges.

Fitment: Fits select older GE and Hotpoint electric ranges requiring a 6-inch rolled-terminal surface unit. Confirm the complete model number and original terminal style.

Replacement and cross-reference numbers: WB30X0254 and 325507

Before ordering: Match the 6-inch diameter, 3-turn coil, wattage, rolled terminal ends, support bracket and receptacle. Do not order from appearance alone.

Diagnostic note: A burner that will not heat can also be caused by a damaged receptacle, loose wiring or failed surface-element switch. Inspect and diagnose the circuit before replacing parts.

Installation note: Disconnect electrical power and allow the appliance to cool before service. Remove and install the plug-in element according to the appliance instructions; replace a burned or loose receptacle before using the new element.
