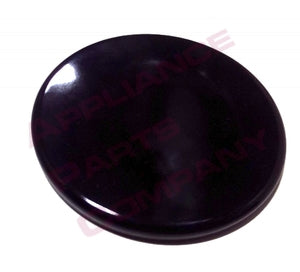

Frigidaire 316213500 Medium Black Burner Cap

Frigidaire 316213500 Medium Black Burner Cap

Frigidaire 316213500 is a genuine OEM medium black cap for a matching 9,500-BTU gas surface burner. It sits over the burner head to help distribute the flame and protect the burner opening from cooking spills.

Fitment: Compatible model examples include Kenmore 79032233400 and 79032239400 gas cooktops. Examples are not a complete fit list. Burner position varies by model, so match the cap to the parts diagram rather than choosing by size alone.

Legacy and replacement numbers: 316213500 replaces OEM part 318076410.

Is it time to replace?

Replace a missing, chipped, cracked, or warped cap that will not sit correctly. For an uneven flame or poor ignition, first clean, fully dry, and reseat the correct cap as directed in the appliance manual. Install only after the cooking surface is cool.

Technical Specifications

How to find your model number For a range, check the oven-door frame or area behind the storage drawer. A cooktop label is usually underneath the unit. Use the complete model number and final suffix.
