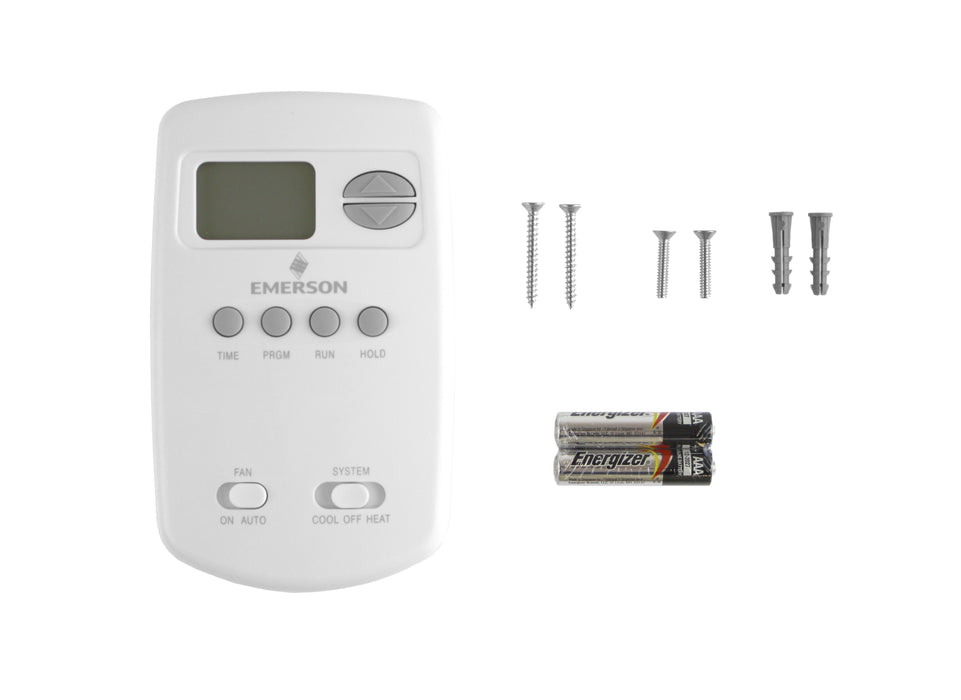

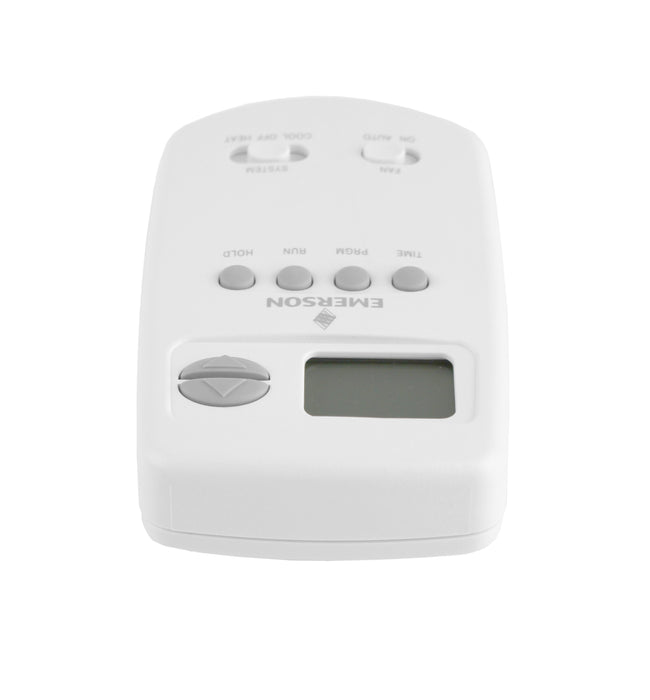

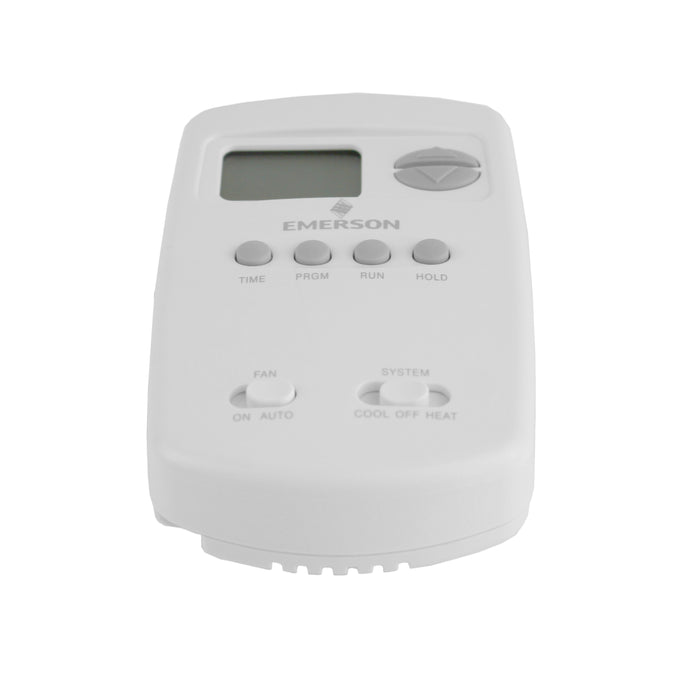

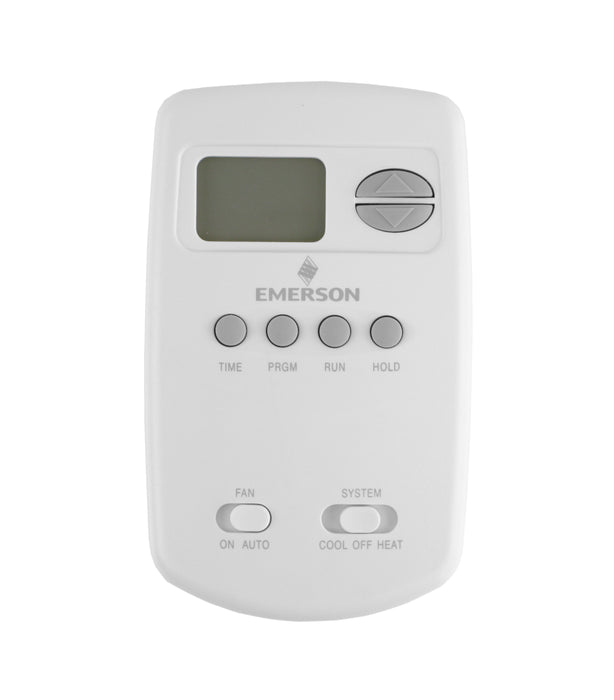

1E78-151 Emerson/White-Rodgers 70 Series Programmable Thermostat
1E78-151 Emerson/White-Rodgers 70 Series Programmable Thermostat
Replace a compatible 70 Series wall thermostat in a residential heating or cooling system. Confirm the complete equipment model, system type, heating and cooling stages, power or voltage, terminal labels, auxiliary/emergency heat requirements, and wiring before ordering. A similar-looking thermostat is not proof of compatibility; some systems require a common wire, adapter, or approved control.
Technical Specifications
| Specification | Details |
|---|---|
| SKU / part number | 1E78-151 |
| Product type | Programmable thermostat |
| Brand | Emerson/White-Rodgers 70 Series |
| Application | Compatible heat/cool, fossil-fuel forced-air, or single-stage heat-pump systems |
| Catalog description | 70 Series thermostat; wiring and system configuration must match the equipment. |
Installation and safety: Turn off power at the HVAC disconnect or breaker before removing the existing thermostat. Label each wire, follow the equipment and thermostat instructions, and use a qualified HVAC technician when system voltage or wiring is uncertain.

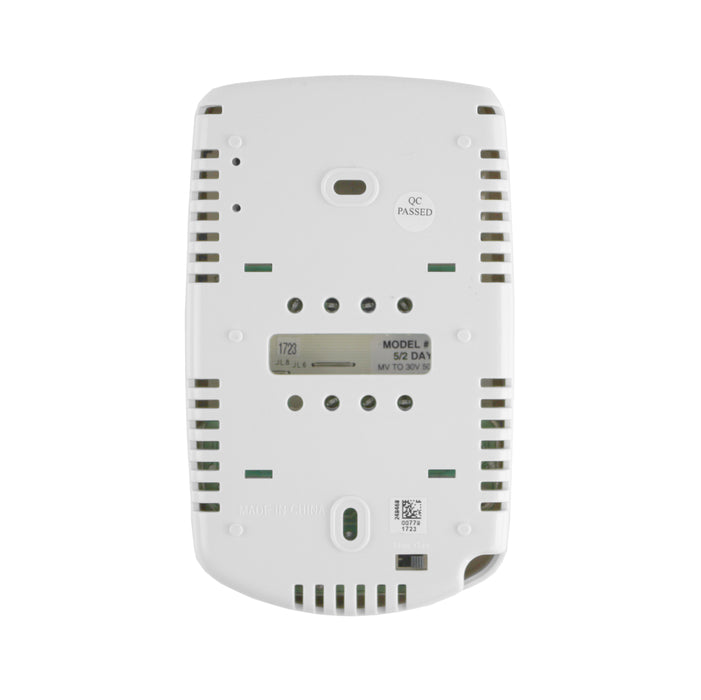

How to find your model number: Read the thermostat model number on the front, behind the faceplate, or inside the sub-base. Also photograph the terminal wiring and locate the furnace, air-handler, or heat-pump model label. Verify the complete equipment and thermostat details before ordering.
Brand
WHITE-RODGERS DIVISION
