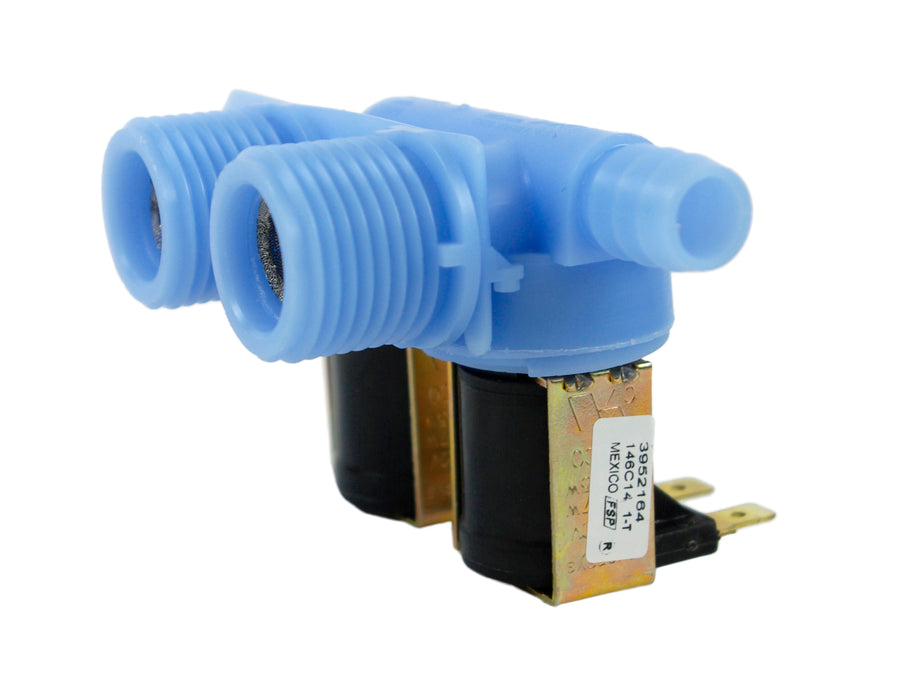

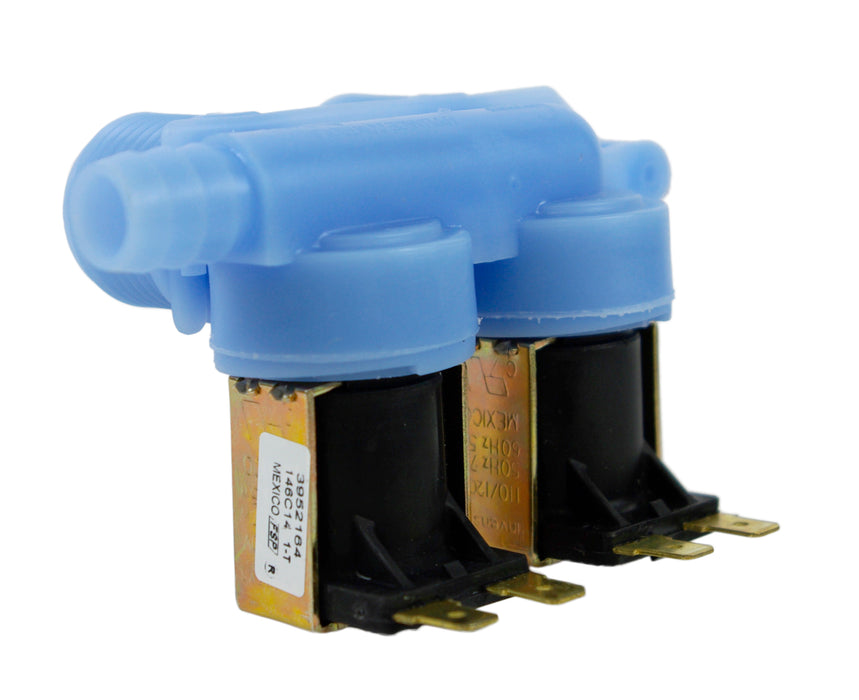

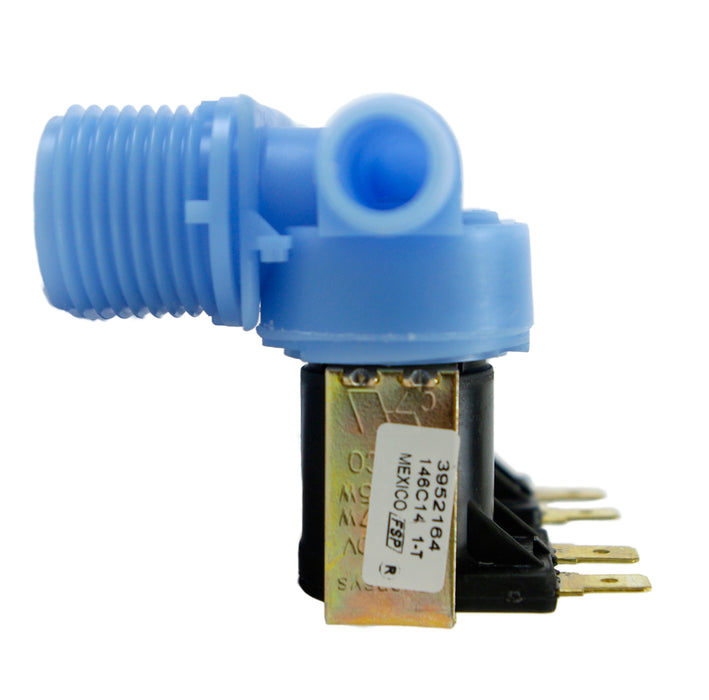

Whirlpool Washer Water Inlet Valve - 285805

Whirlpool Washer Water Inlet Valve - 285805

Restore hot and cold water fill with this genuine Whirlpool Washer Water Inlet Valve - 285805. The valve opens to allow hot and cold water into the washer during wash and rinse portions of the cycle.

285805 is used when the original washer part is worn, leaking, stripped, broken, or no longer performing correctly. Match by exact model lookup and mechanical configuration.

Fits These Brands / Families: Select Whirlpool-built washer platforms, including Whirlpool, Kenmore, KitchenAid, Roper, Maytag, and related brands where listed.

This part commonly replaces or cross-references AP3094541, 868761, 21026, 285805VP, 292197, 3349451, 3354565, 3360387, 3360388, 3360389, 3360391, 3360392, 3429537, 358992, 370067, 388328, 3952163.

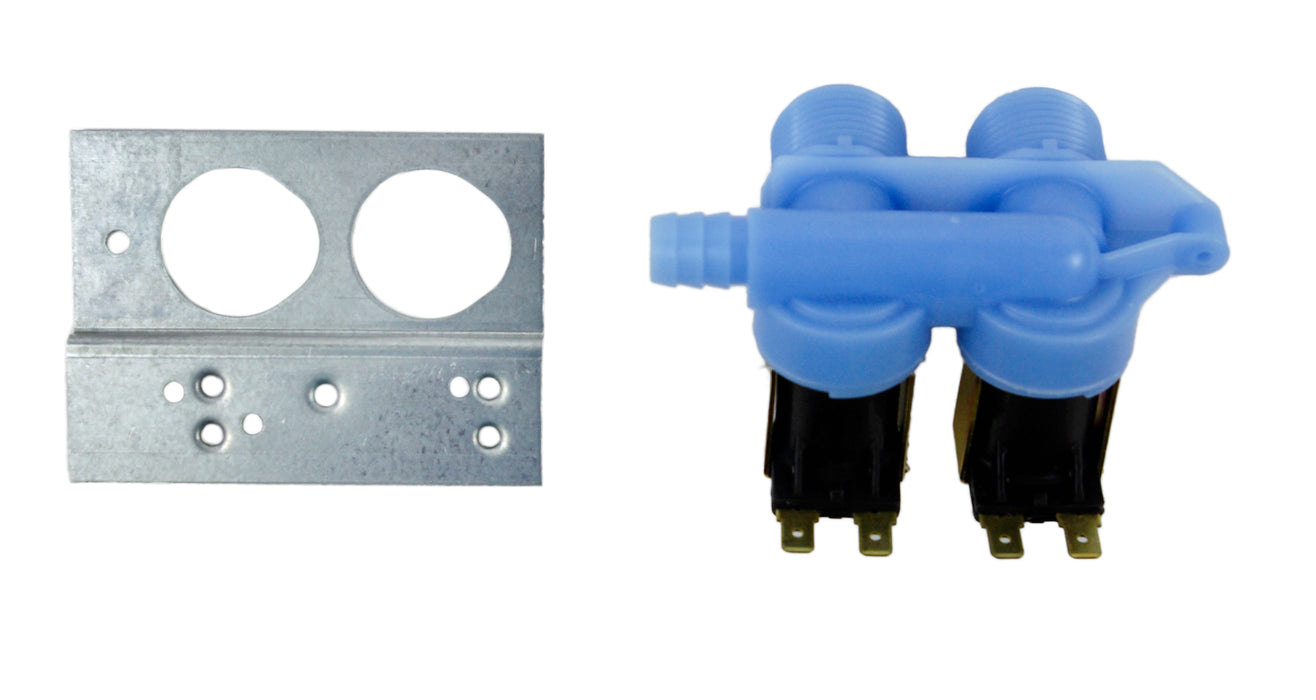

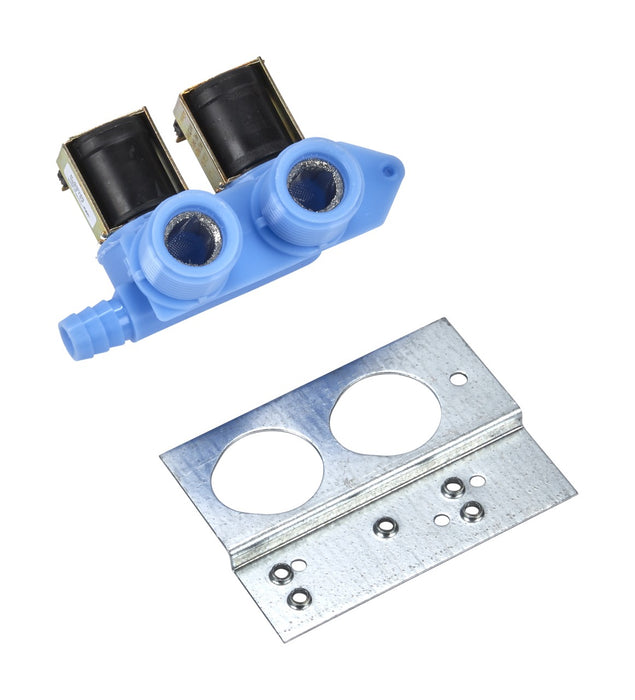

Fitment / What To Verify: Verify valve body color, two inlet ports, 3/4-11 x 1/2 NHT hose threads, 1/2-inch ID hose compatibility, mounting bracket, and electrical terminals.

Please confirm fitment with your appliance model number before ordering.

Is it time to replace?

• Common Symptoms: No hot or cold water, slow fill, washer keeps filling when off, leaking valve, or inlet noise.
• Visible/Sensory Cues: Cracked valve body, mineral-clogged screen, corroded terminals, leaking ports, or water seepage after power is removed.

Pro Tip: If the washer keeps filling after it is unplugged, the inlet valve is usually mechanically stuck open.

Technical Specifications

Legacy part number(s)/code(s): 292197, 3349451, 3354565, 3360387, 3360388, 3360389, 3360391, 3360392, 3429537, 358992, 370067, 388328, 3952163, 3952164, 3955673, 99989697, W10110517

Please note: These legacy parts have been replaced by this item. They may not look exactly the same, but the manufacturer of these appliances has assured us that they will function properly.
