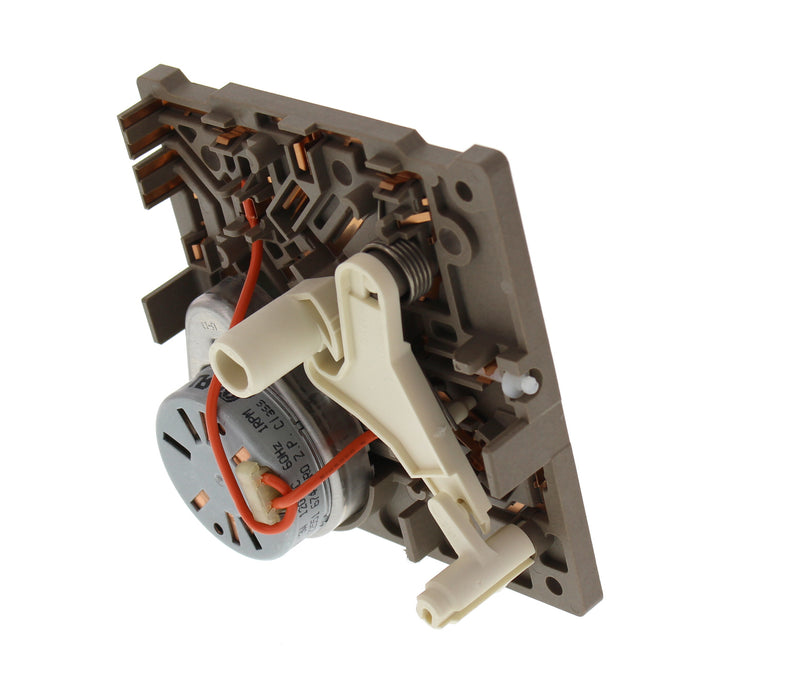

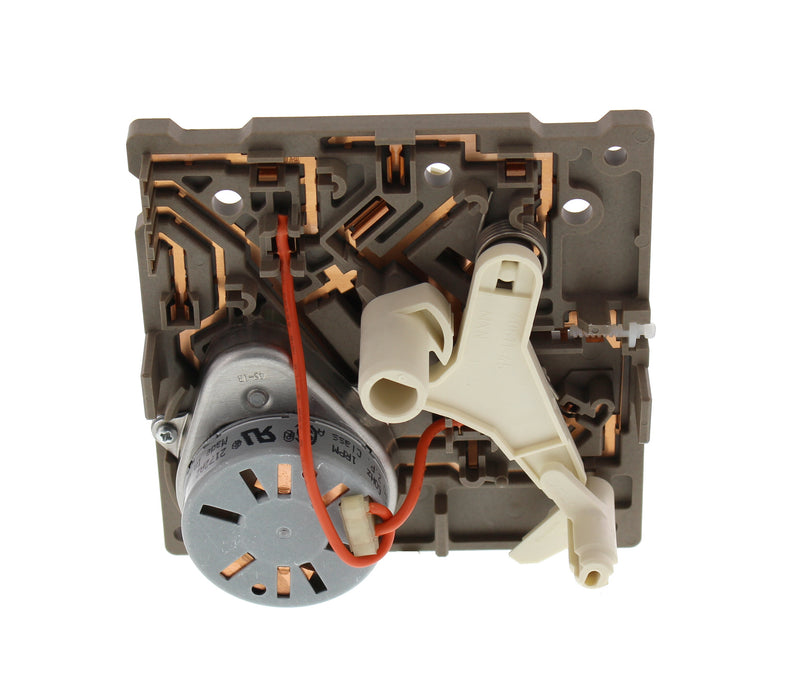

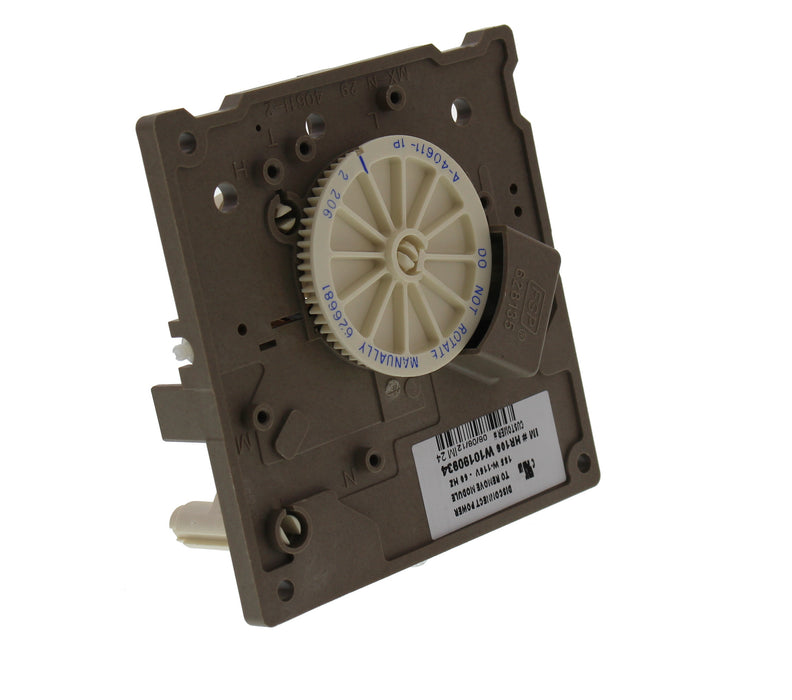

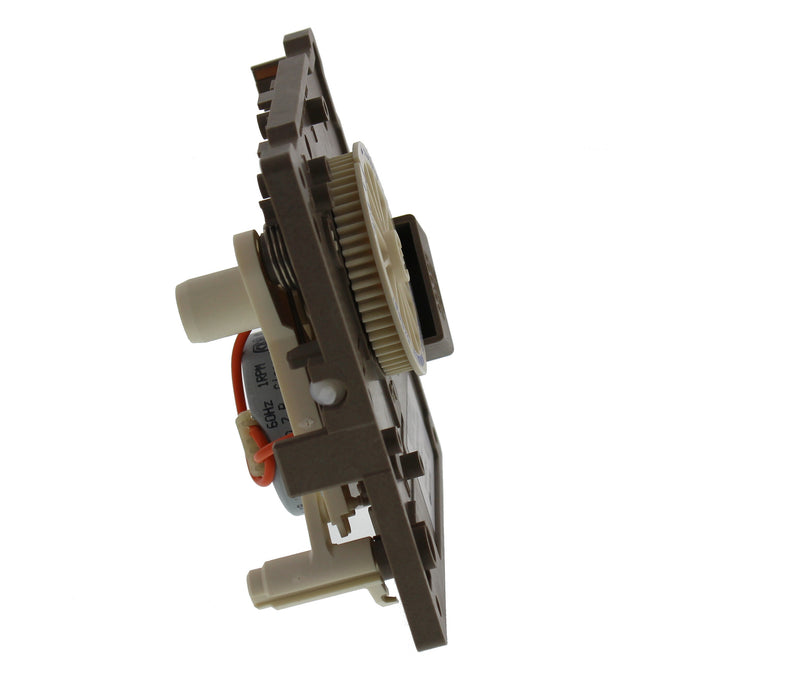

Whirlpool Ice Maker Control Module - 8201515

Whirlpool Ice Maker Control Module - 8201515

Restore automatic ice production with this genuine Whirlpool refrigerator ice maker component - 8201515. This part supports the fill, freeze, harvest, or control function used to produce and release ice in compatible refrigerator/freezer ice maker systems.

8201515 is a Whirlpool ice maker part used when the original unit no longer fills, freezes, harvests, or cycles correctly. Key supportable detail: ice maker control module that cycles the mold heater and ejector timing on supported modular ice maker assemblies.

Fits These Brands / Families: Select Whirlpool, KitchenAid, Maytag, Kenmore, Amana, Roper, and related Whirlpool-built refrigerator/freezer platforms.

Included / Transfer Notes: Control module only unless otherwise shown in the kit. Do not discard the original part until the replacement has been compared and installed.

Fitment / What To Verify: Verify the full refrigerator model number, freezer mounting style, plug/harness shape, fill tube position, shutoff/bail arm requirement, ice bucket layout, and whether the original cover or wire harness must be transferred. Some Whirlpool ice makers look similar but do not fit door-mounted auger or different harness platforms.

Please confirm fitment with your appliance model number before ordering.

Is it time to replace?

• Common Symptoms: No ice, low ice production, hollow cubes, leaking into the bucket, cubes will not eject, ice maker will not cycle, or module stalls mid-harvest.
• Visible/Sensory Cues: Coating flaking from mold, cracked mold, burned module contacts, broken ejector fingers, leaking fill cup, or damaged shutoff arm connection.

Pro Tip: After installation, allow several hours for the first harvest and up to 24 hours for normal production. Confirm the water valve and fill tube are working before condemning the ice maker.

Technical Specifications

Legacy part number(s)/code(s): W10190934, W10223929, W10251742, W10311985, 626653, 626678, 626683, 626691, 628519, W10122535

Please note: These legacy parts have been replaced by this item. They may not look exactly the same, but the manufac
