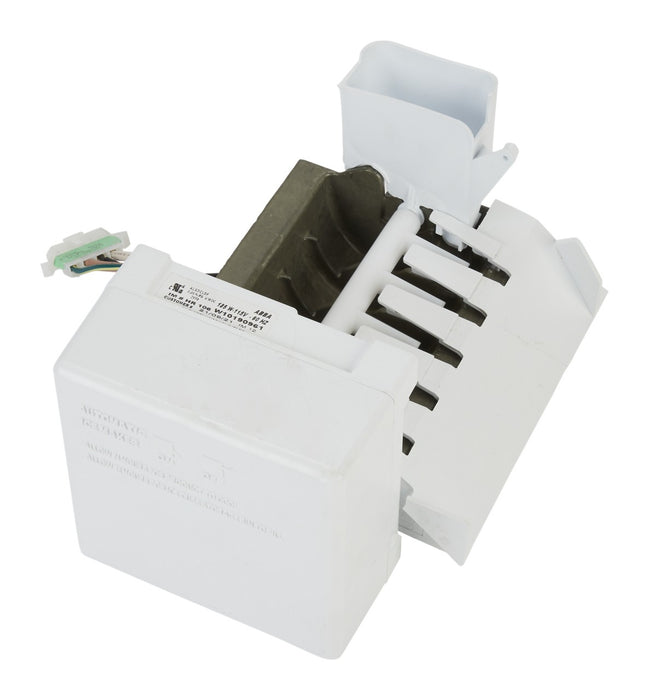

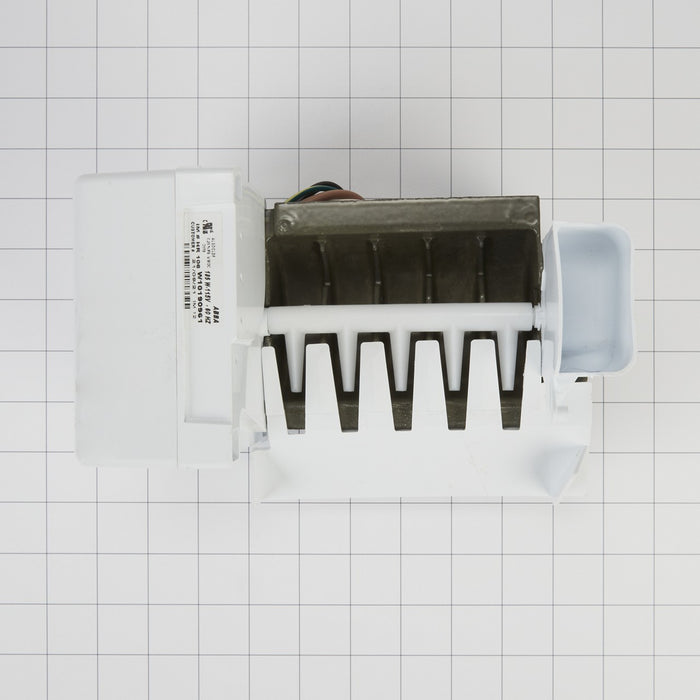

Whirlpool Refrigerator Ice Maker Assembly - WPW10190961

Whirlpool Refrigerator Ice Maker Assembly - WPW10190961

Restore automatic ice production with this genuine OEM Whirlpool Refrigerator Ice Maker Assembly - WPW10190961. This refrigerator ice maker assembly fills, freezes, harvests, and ejects ice cubes in compatible refrigerator ice-maker systems.

WPW10190961 is a genuine OEM Whirlpool refrigerator ice maker assembly for compatible appliance models where this exact service part number is specified. In-door 5-cube ice maker; cover and bracket are normally transferred from the original unit.

Compatibility: select Whirlpool-built refrigerator platforms, including Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, and select Kenmore models where this exact part is specified.

This part commonly replaces previous part numbers including 2212352, 2212353, W10122503, W10190961.

Fitment / What To Verify: Verify the refrigerator model number, cube style, harness plug, shutoff arm/optics setup, cover/bracket reuse requirements, and whether the water valve is the actual cause of no ice.

Please confirm fitment with your appliance model number before ordering.

Is it time to replace?

• Common Symptoms: No ice production, ice maker will not cycle, mold coating is flaking, cubes are small or misshapen, or the unit will not eject ice.
• Visible/Sensory Cues: Corroded or flaking mold, stalled ejector fingers, cracked module, damaged harness, or a shutoff arm/cover that no longer transfers correctly.

Pro Tip: Before replacing the ice maker, confirm freezer temperature is cold enough and the fill tube is not frozen.

Technical Specifications

Legacy part number(s)/code(s): W10190961, 2212352, 2212353, W10122503

Please note: These legacy parts have been replaced by this item. They may not look exactly the same, but the manufacturer of these appliances has assured u
