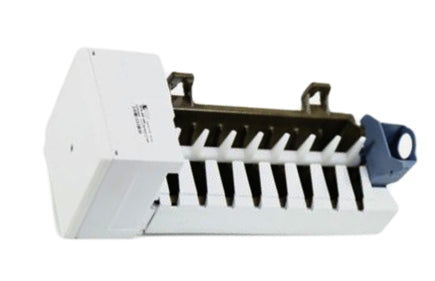

Whirlpool Refrigerator Ice Maker Assembly - W10916040

Whirlpool Refrigerator Ice Maker Assembly - W10916040

Restore automatic refrigerator ice production with this genuine OEM Whirlpool Refrigerator Ice Maker Assembly - W10916040. This ice maker receives water, freezes it in the mold, harvests the cubes, and cycles again until the ice bin is full.

W10916040 is a genuine OEM Whirlpool refrigerator ice maker assembly used for select refrigerator applications. Replace it when the ice maker no longer cycles, will not fill, leaks from the mold, overfills, or fails to eject ice.

Fits These Brands / Families: Fits select Whirlpool side-by-side refrigerator models with compatible in-door ice maker systems, including source-listed ED5KVEXVB07, ED5KVEXVQ07, ED5PVEXWS14, ED5VHEXVB09, and ED5VHEXVQ09 examples.

This part commonly replaces previous part numbers including W10377149, WPW10377149, W10754511, AP6048461, PS12070274.

Fitment / What To Verify: This model is not for refrigerators that use a door-mounted auger assembly with the electronic ice-level sensor. Verify ice maker location, old shut-off arm transfer, wiring harness, and fill cup alignment.

Please confirm fitment with your appliance model number before ordering.

Is it time to replace?

• Common Symptoms: No ice production, small or hollow cubes, ice maker not cycling, leaking into the bin, or overfilling.
• Visible/Sensory Cues: Cracked mold, stalled ejector fingers, frozen fill cup, damaged harness, or broken shut-off arm.

Pro Tip: Confirm water supply, freezer temperature, and water inlet valve operation before condemning the ice maker assembly.

Technical Specifications

Legacy part number(s)/code(s): B0743P94KS

Please note: These legacy parts have been replaced by this item. They may not look exactly the same, but the manufacturer of these appliances has assured us that they will function properly.

If you have questions, please message us before ordering so we can address your concerns. Please review our Return Policy before purchasing.
