Frigidaire Refrigerator Ice Maker - 5304458371

Frigidaire Refrigerator Ice Maker - 5304458371

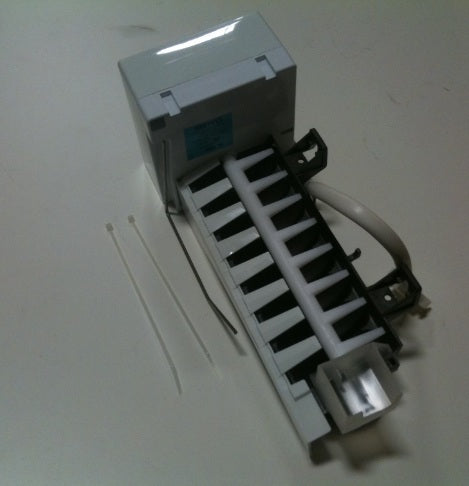

Restore automatic ice production with this genuine OEM Frigidaire Refrigerator Ice Maker - 5304458371. This icemaker assembly fills, freezes, and ejects ice into the storage bin on compatible refrigerator and freezer models.

5304458371 is used on newer Frigidaire-built models where the cord plugs directly into the back of the freezer. Source listings identify the assembly as including the cover, fill cup, bail arm, and four-pin plug harness, with the icemaker itself sometimes marked 241798231.

Compatibility: Fits select Frigidaire, Kenmore/Sears, Westinghouse, Gibson, and Electrolux refrigerator/freezer platforms that call for icemaker assembly 5304458371.

Fitment Families: Direct-plug freezer icemaker family. Exact fit depends on freezer liner mounting, plug style, harness pin count, fill tube location, bail arm clearance, water valve operation, and freezer temperature.

This part commonly cross-references or replaces previous/service part numbers including 240352421, 240352409, 240352411, 240352407, AP3966072, 1198681.

Fitment / What To Verify: Verify full model number, 4-pin plug harness, mounting bracket/cover style, fill cup position, bail arm clearance, water line/valve condition, and freezer temperature near 0 degrees F. If the freezer is too warm or the water valve is bad, a new icemaker may not solve the issue.

Please confirm fitment with your appliance model number before ordering.

Is it time to replace?

• Common Symptoms: Ice maker not making ice, hollow or small cubes, leaking from fill area, ice maker will not eject, or bail arm/cover damage.
• Visible/Sensory Cues: Cracked fill cup, broken bail arm, frozen fill tube, damaged harness plug, water overflow marks, or ice maker mold corrosion.

Pro Tip: Before replacing the icemaker, verify the freezer reaches proper temperature and the water inlet valve supplies water. Temperature or valve problems can mimic a failed icemaker.

Technical Specifications
