Whirlpool Range Drawer Glide Kit - W10763667

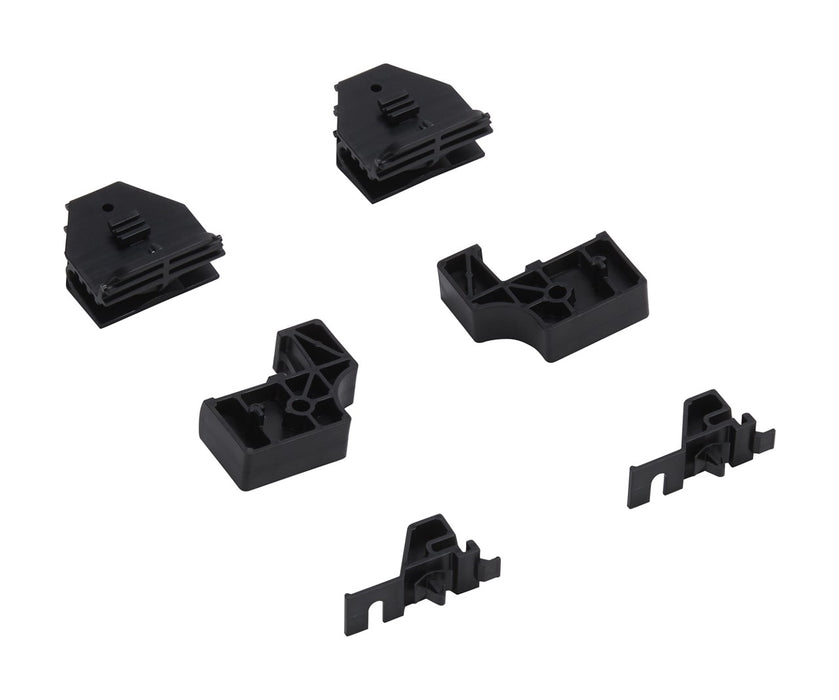

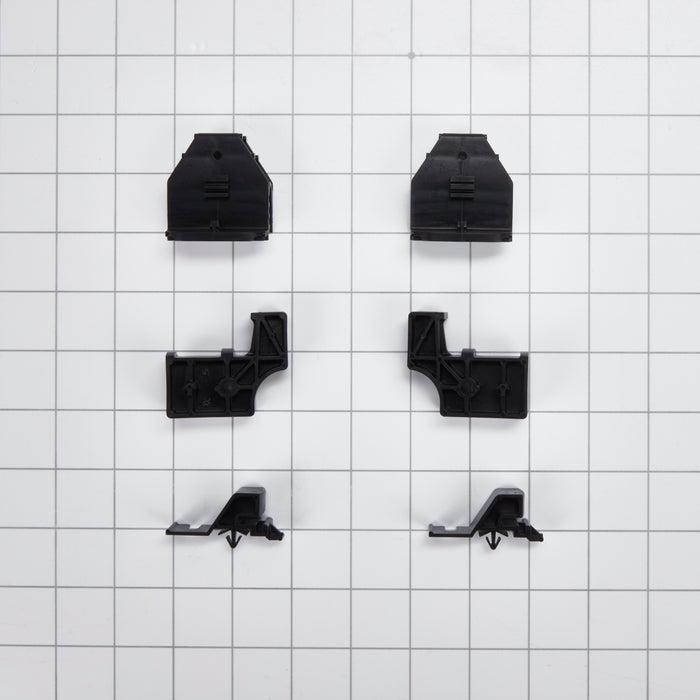

Renew worn front and rear range drawer supports with genuine OEM Whirlpool kit W10763667. The kit contains two rear glides, four front glides and installation instructions. Choose the correct front-glide pair for your model; only two front pieces are used per application.

Fitment: Verify the full range model and select the front-glide style shown in the kit instructions. Match the original front and rear mounting locations. This service kit supplies alternate front guides for different applications; it is not six guides installed on every drawer.

Verified model examples: Whirlpool WFE510S0AS0 and WFE540H0AS0. Examples are not a complete fit list; confirm your full model before ordering.

Legacy / service numbers: Replaces OEM numbers W10317898, W10317899 and WPW10317899 on specified range applications.

Is it time to replace?

Drawer drags, sags or closes unevenly; a front or rear guide is cracked, missing or worn through. Check the drawer rails and cabinet mounts before replacing the guides.

How to find your model number: Look for the model/serial label on the oven frame with the door open or behind the lower drawer after the range cools. Include every model suffix and revision digit.
