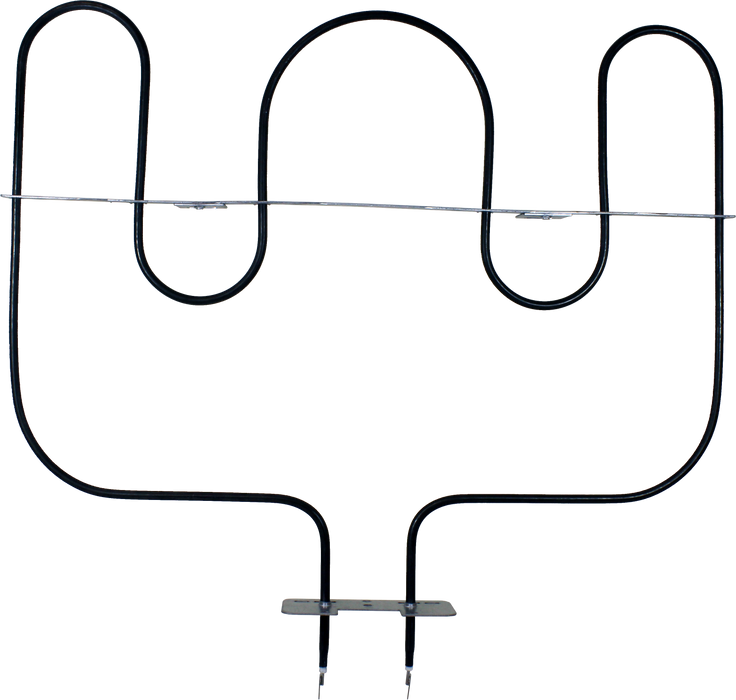

Supco Range Bake Element - CH3202

Supco Range Bake Element - CH3202

Restore oven baking heat with this aftermarket replacement Supco Range Bake Element - CH3202. This lower bake element supplies the main heat used for baking and preheating in compatible electric ranges.

CH3202 is an aftermarket Supco bake element made as a direct replacement for LG-family bake element numbers including MEE36593202. It mounts to the rear oven wall and uses quick-connect terminals.

Compatibility: Designed as a replacement for select LG electric ranges that use the MEE36593202/MEE36593201/5300W1S026A bake-element platform.

This part commonly replaces previous part numbers including MEE36593202, MEE36593201, 5300W1S026A.

Fitment / What To Verify: Verify the full range model number, element shape, mounting bracket, terminal spacing, 1/4-inch male quick-connect terminals, insert depth, wattage, voltage, and whether the old element fastens to the back wall in the same way.

Please confirm fitment with your appliance model number before ordering.

Is it time to replace?

• Common Symptoms: Oven will not heat, slow preheat, uneven baking, visible arcing, element will not glow, or the oven trips power when bake is selected.
• Visible/Sensory Cues: Blistered sheath, cracked element tube, broken terminal, burned connector, hot spots, or a section of the element that stays dark while powered.

Pro Tip: Disconnect power before service. If terminals or wires are burned, repair the damaged connection before installing the new element so the replacement does not fail early.
