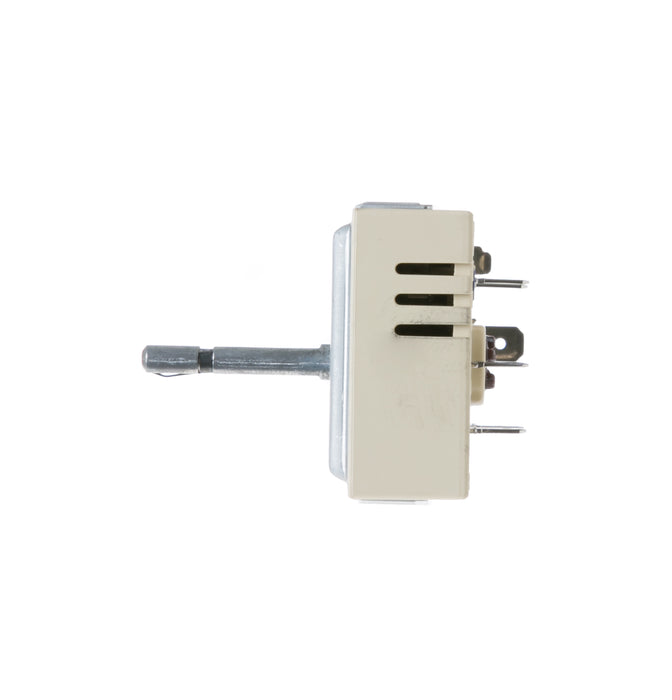

GE Appliances Range Surface Element Infinite Switch - WB24T10119

Regulates electrical power to a surface heating element so the burner knob can control heat output. A failed switch may cause a burner that will not heat, stays at one setting, overheats, cycles incorrectly, or remains energized after the control is turned off; symptoms alone do not confirm the switch is defective.

Fitment guidance: For select GE Appliances electric ranges and cooktops that list part number WB24T10119. This is a model-specific electrical control, not a visual-match or universal-fit part. Verify the complete model and serial number, original switch number, terminal markings, shaft style, element position, and electrical rating before ordering; similar-looking switches are not interchangeable.

Service and safety note: Disconnect power at the breaker and verify power is off before service. This repair involves line-voltage wiring. Follow the appliance wiring diagram and service manual; replacement terminal positions can differ from the original. Use a qualified appliance technician if you are not experienced with electrical repairs.

Compatible model examples: PP912BM1BB, JSP57BF1BB, JB910SL5SS. These are examples only; other revisions can use different parts.

Model prefixes to check: PP912, JSP57, JB910S. A prefix alone does not establish fitment; match the full model and production revision against the parts diagram.

How to find your model number: Check the rating plate around the oven-door frame, behind or beneath the storage drawer, on the frame after the drawer is removed, or under the cooktop. Record the complete model and serial number, then confirm the parts diagram specifies WB24T10119.

Earlier manufacturer part numbers: WB24K10066, WB24T10032, WB24T10057. Confirm any manufacturer substitution for your complete model and production revision.
