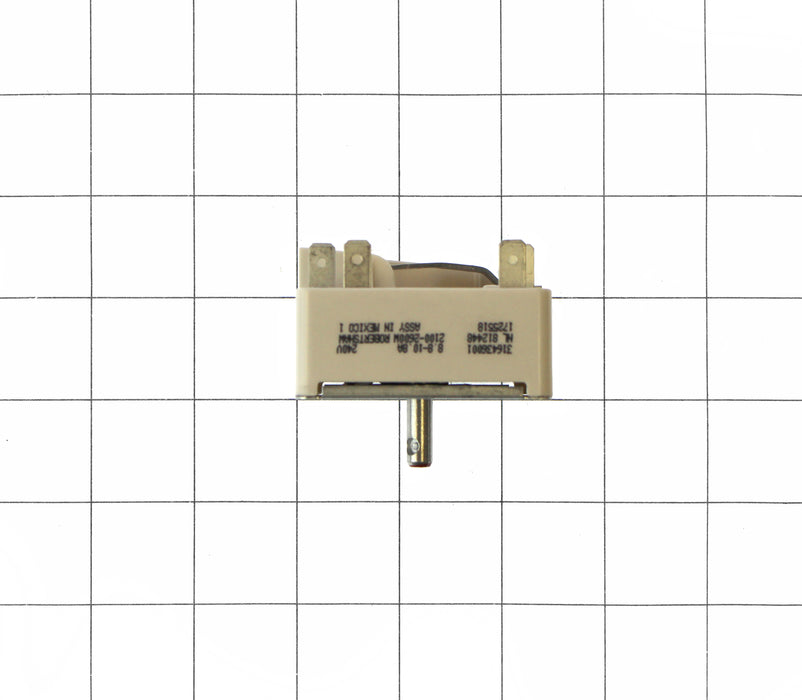

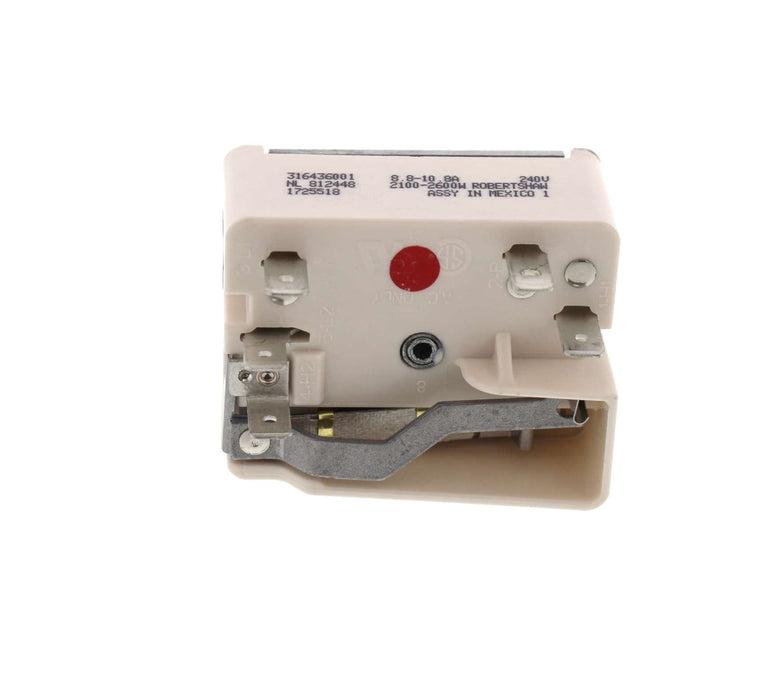

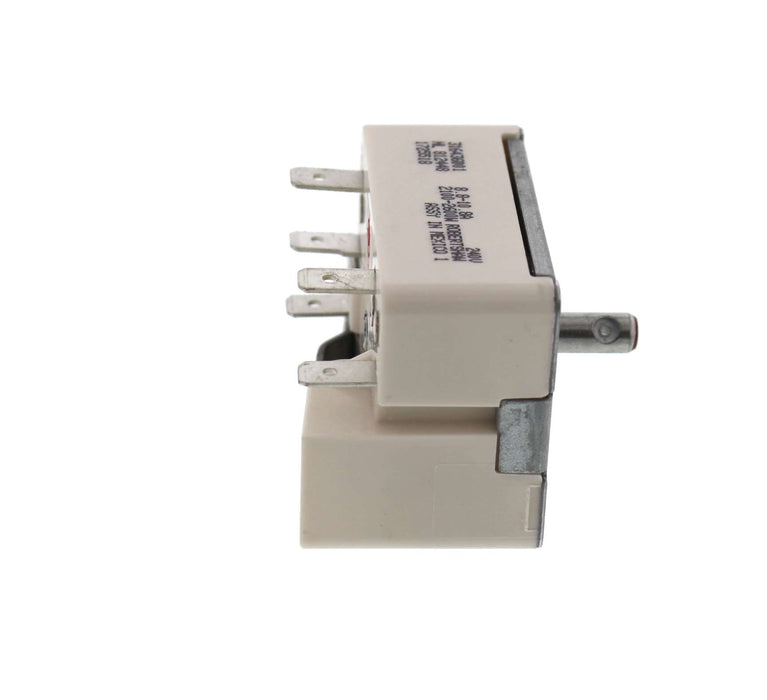

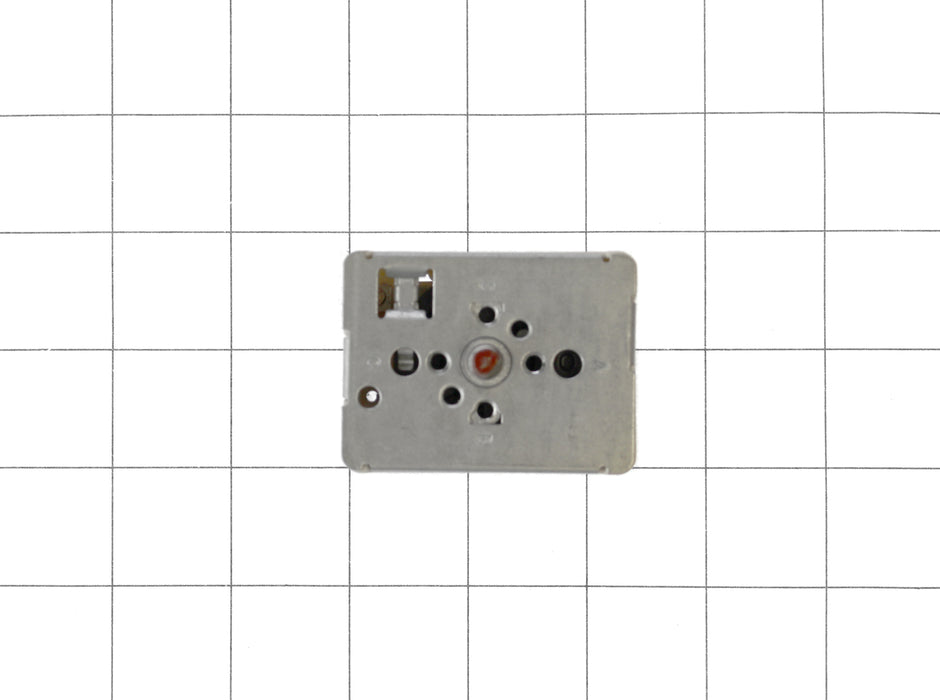

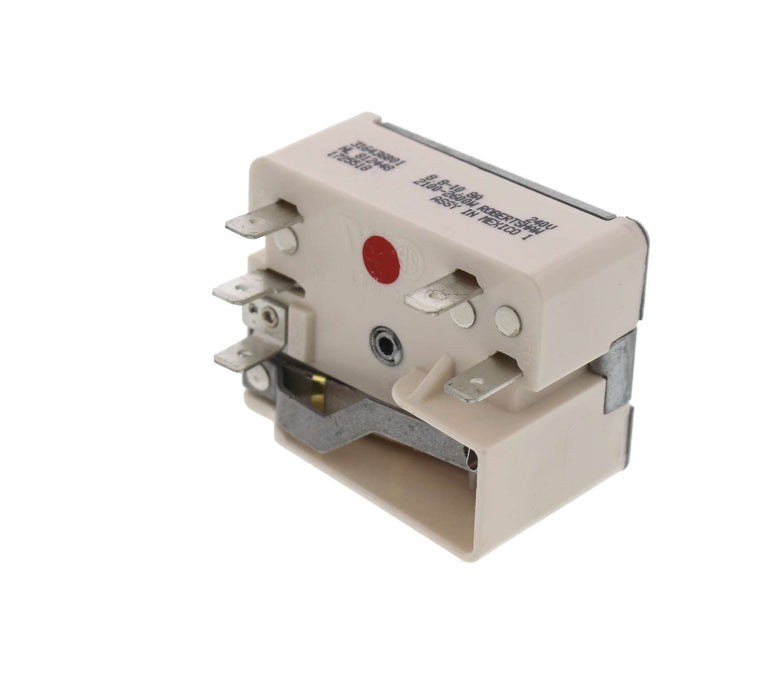

Frigidaire Range Surface Heating Switch - 316436001

Frigidaire Range Surface Heating Switch - 316436001

Restore large-burner heat control with this genuine OEM Frigidaire Range Surface Heating Switch - 316436001. This infinite switch cycles power to the large surface element so the burner can maintain the selected heat setting.

316436001 is a genuine Frigidaire/Electrolux large-element surface switch used when the original switch will not send power correctly or no longer controls temperature consistently.

Compatibility: Fits select Frigidaire, Kenmore, Tappan, Crosley, Gibson, Kelvinator, White-Westinghouse, and related electric range platforms that use the large-element 316436001 switch.

This part commonly replaces previous part numbers including 316021501, 5304506425, AP3885460, 1155395, PS1145040.

Fitment / What To Verify: Verify the full range model number, large vs small burner position, terminal markings, wire locations, voltage/wattage rating, shaft length, knob fit, and wiring diagram before ordering.

Please confirm fitment with your appliance model number before ordering.

Is it time to replace?

• Common Symptoms: Burner will not heat, stays on high, cycles erratically, will not turn off, or the knob setting no longer matches heat output.
• Visible/Sensory Cues: Burned terminals, melted switch body, loose shaft, arcing odor, discolored wires, or overheated connector ends.

Pro Tip: Take a photo of the original wiring before removing wires. Install each wire on the matching terminal marking and disconnect power before service.

Technical Specifications
