Whirlpool Range Surface Element - W10823692

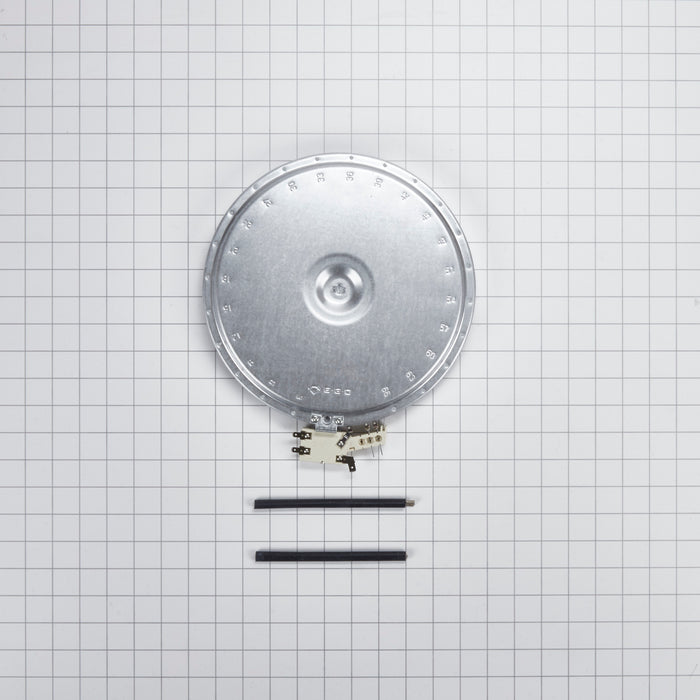

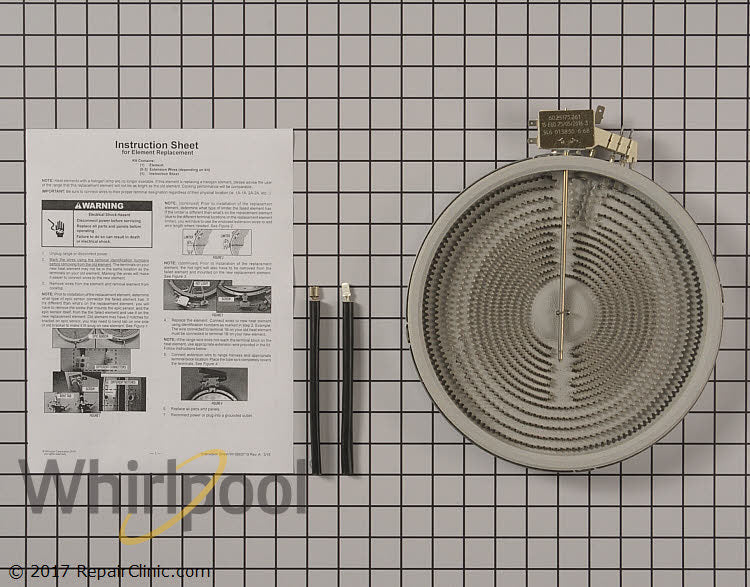

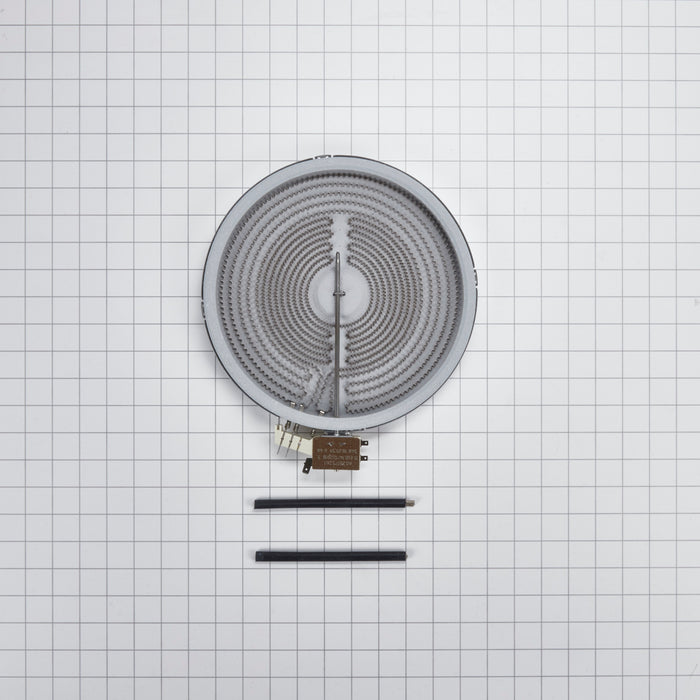

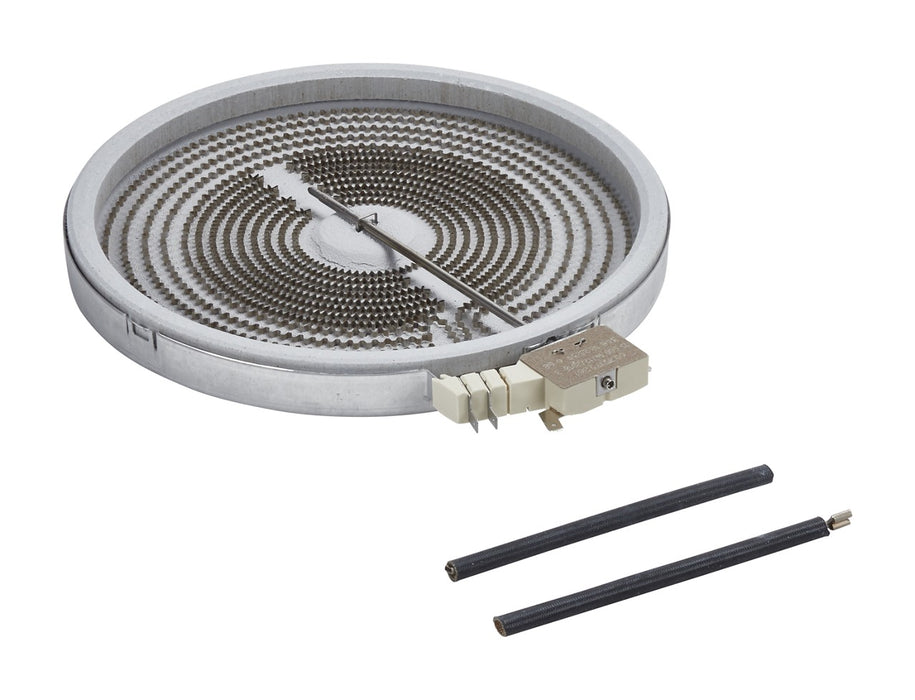

Whirlpool Dual Radiant Surface Element - W10823692

Restore dependable cooktop heating on the burner position with this genuine OEM Whirlpool Dual Radiant Surface Element - W10823692. This dual radiant surface element produces heat beneath a smooth-top cooktop and is designed to cycle between heat settings for normal surface cooking.

W10823692 is a genuine OEM Whirlpool radiant surface element. Official parts sources identify it as a dual cooktop element rated at 1200/2500 watts rather than a basic single-size coil element.

Compatibility: This item is selected by exact specifications, connector style, and application rather than by appearance alone.

Fitment / What To Verify: Verify the original element style, watt rating, burner position, wiring harness, and mounting pattern before ordering. Smooth-top radiant elements are not interchangeable based on diameter alone.

Please confirm the exact specifications and application before ordering.

Is it time to replace?

• Common Symptoms: Burner will not heat, only one heat zone works, erratic temperature control, or weak cooktop heating.
• Visible/Sensory Cues: Visible damage under the glass, open element readings, or one zone of a dual element no longer responding.

Pro Tip: If the surface element does not heat, the element or its matching control switch may be at fault. Compare the original connector layout before replacing either part.

Technical Specifications

Legacy part number(s)/code(s): WP74011551, 3191723, 74008897, 74011551, 7406P403-60, 7406P431-60, 8272563, 8523693, 9756697, 9759351

Please note: These legacy parts have been replaced by this item. They may not look exactly the same, but the manufacturer of these appliances has assured us that they will function properly.

If you have questions, please message us before ordering so we can address your concerns. Please review our Return Policy before purchasing.
