Restore oven control, display, bake, broil, and self-clean command functions with this genuine OEM Frigidaire Range Electrical Control Mechanism - 5304495520. This electronic oven control board manages range display/timer functions and sends control signals for bake, broil, and self-cleaning operation on compatible ranges.

5304495520 is a model-specific oven electronic control board. Source guidance notes to test heating elements and confirm the range is receiving power before replacing the board, because no-heat symptoms can also be caused by failed elements, wiring, sensors, or supply voltage issues.

Compatibility: Fits select Frigidaire, White-Westinghouse, Kelvinator, Gibson, Kenmore/Sears, Tappan, and Electrolux range platforms where the model lookup calls for 5304495520.

Fitment Families: Used on Frigidaire-built electric range electronic oven control systems. Exact fit depends on model number, control overlay/keypad, connector layout, board revision, mounting points, and whether the overlay is reused or purchased separately.

This part commonly cross-references or replaces previous/service part numbers including 316560105, AP5807223, PS9494055.

Fitment / What To Verify: Verify the full range model number, board number, connector positions, overlay/keypad compatibility, mounting style, and whether the clock overlay is included or must be reused. Photograph wire locations before removal.

Please confirm fitment with your appliance model number before ordering.

Is it time to replace?

• Common Symptoms: Display not working, touchpad not responding, oven will not bake or broil, oven temperature erratic, self-clean not operating, or control failure codes after confirming elements, sensor, and power supply are good.
• Visible/Sensory Cues: Burned relay area, darkened board, failed display segments, loose connector, damaged ribbon, or visible heat damage near the control area.

Pro Tip: Electronic boards are often misdiagnosed. Confirm incoming voltage, bake/broil element continuity, oven sensor resistance, and harness condition before replacing the control board.

Technical Specifications

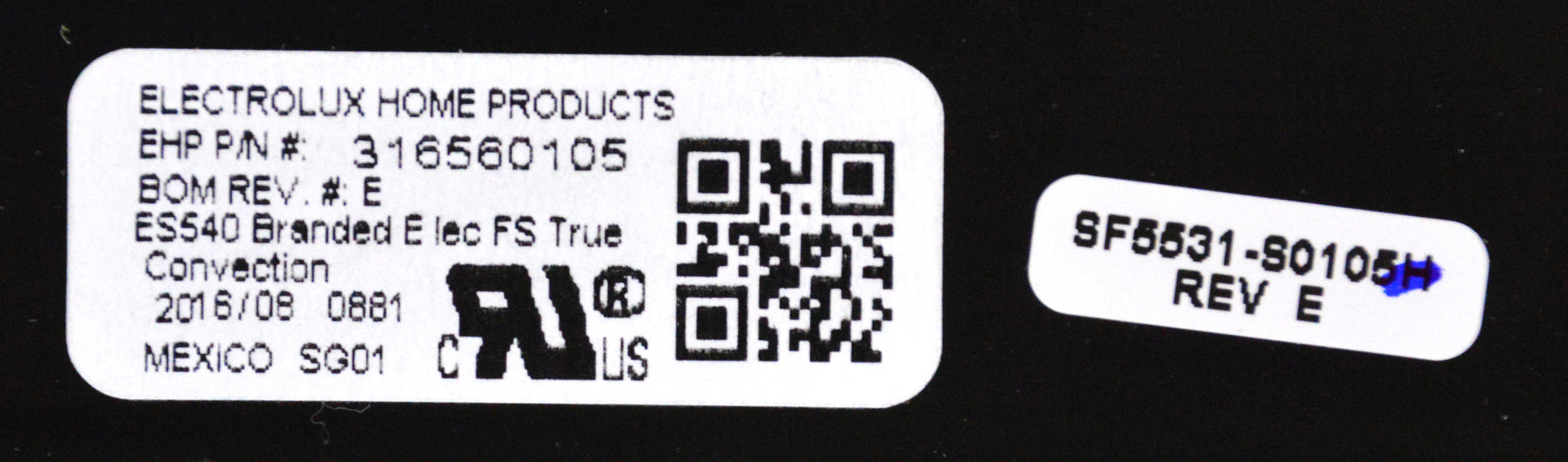

Legacy part number(s)/code(s): 316560105
