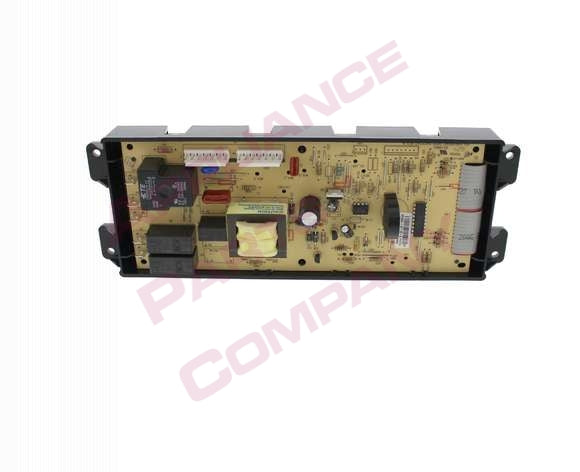

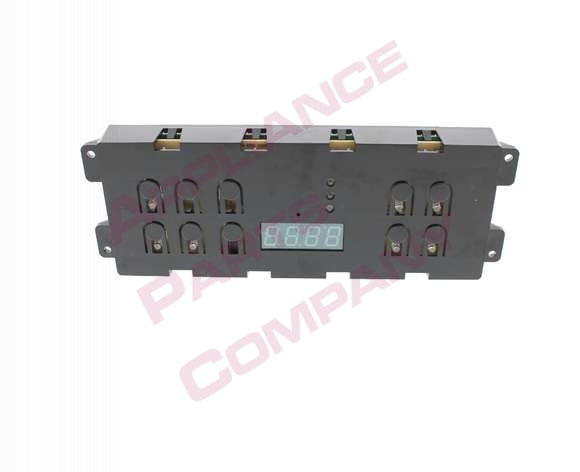

Frigidaire Oven Electronic Control Board - 5304509493

Frigidaire Oven Electronic Control Board - 5304509493

Restore oven electronic control functions with this genuine OEM Frigidaire Oven Electronic Control Board - 5304509493. This board controls oven bake/broil command functions and the electronic oven control interface on compatible Frigidaire-built ranges.

5304509493 is a model-specific electronic oven control board. Source listings identify it as the board to consider when the bake or broil element does not heat after other causes have been checked.

Compatibility: Fits select Frigidaire, Crosley, Kelvinator, Tappan, Westinghouse, and related Electrolux-family range platforms where the model lookup calls for 5304509493.

Fitment Families: Frigidaire-built EOC board family. Exact fit depends on model number, overlay/keypad, connector layout, mounting points, board revision, and whether the overlay is included or reused.

This part commonly cross-references or replaces previous/service part numbers including 316557100, 316418200, AP6261761, PS12114577.

Fitment / What To Verify: Verify the full range model number, board number, connector layout, overlay/keypad compatibility, mounting style, and whether the original overlay must be transferred. Diagnose elements, sensor, voltage, and harness before replacing the control board.

Please confirm fitment with your appliance model number before ordering.

Is it time to replace?

• Common Symptoms: Oven will not start, little or no heat when baking, broiler not working, touchpad not responding, display/control failure, or element will not heat after confirmed element and wiring checks.
• Visible/Sensory Cues: Failed display segments, burned relays, darkened board area, loose connector, damaged ribbon cable, or visible heat damage near the control.

Pro Tip: Photograph wire locations before disconnecting the old board. Incorrect wire placement can damage the new control immediately.

Technical Specifications
