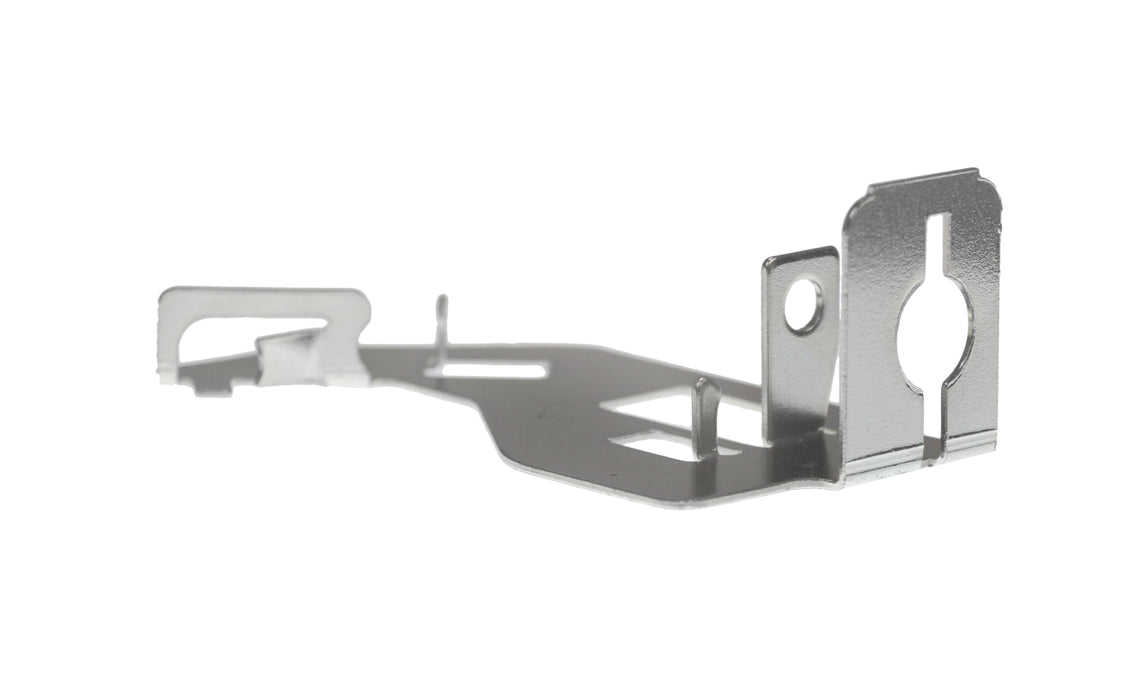

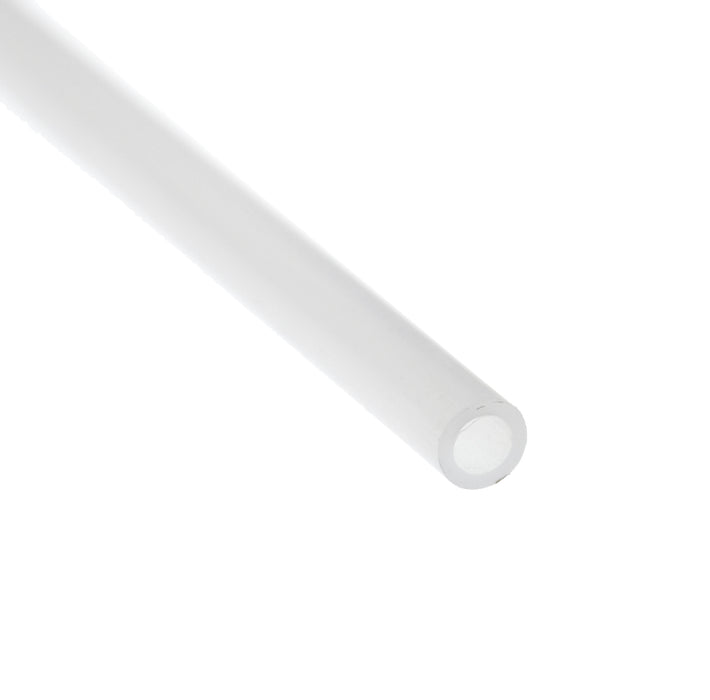

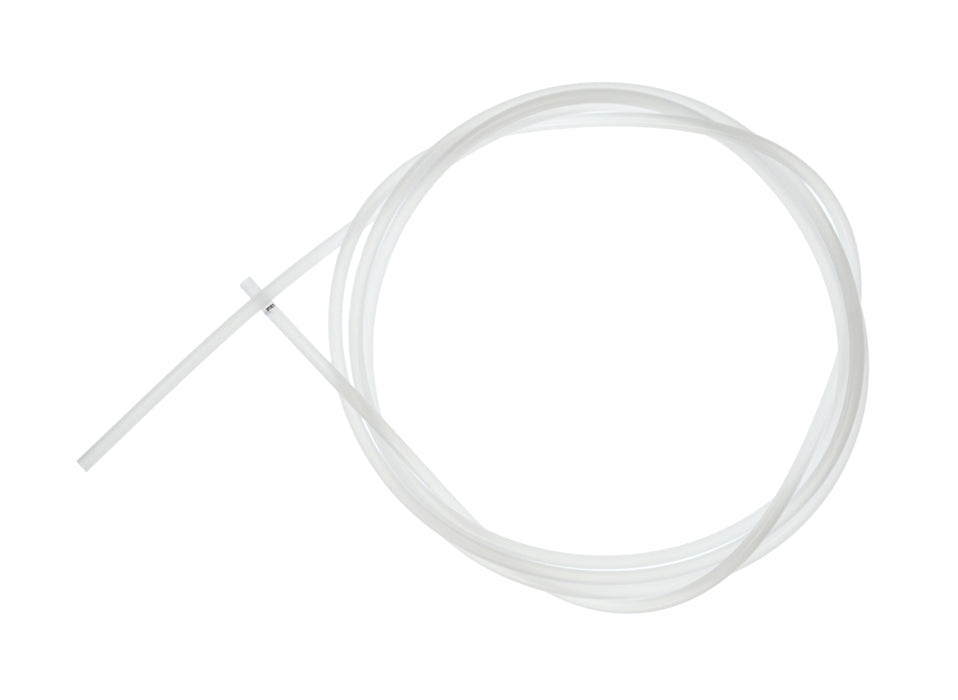

Whirlpool Refrigerator Water Dispenser Fitting and Tube Assembly - 8201537

Whirlpool Refrigerator Water Dispenser Fitting and Tube Assembly - 8201537

Replace the fitting and tubing connection for your refrigerator water dispenser with this genuine Whirlpool assembly.

Replaces: 2257425, W10133007, 2304317, 2257420, and 2209718.

Includes: Water-dispenser fitting and tube assembly. Whirlpool's current replacement assembly does not include the anti-drip valve.

Fitment: For select refrigerators that specify 8201537 or a listed replacement number. Verify your complete model number and dispenser water-line diagram before ordering, including any separate valve required for your repair.

Is it time to replace?

• Common Symptoms: Water fails to reach the dispenser or ice maker, or the connection leaks.
• Visible/Sensory Cues: Visible cracks, damaged threads, kinks, a loose fitting or moisture at the joint.

Pro Tip: Shut off the water supply before servicing. Match fitting type and tubing outside diameter; test the finished connection for leaks.
