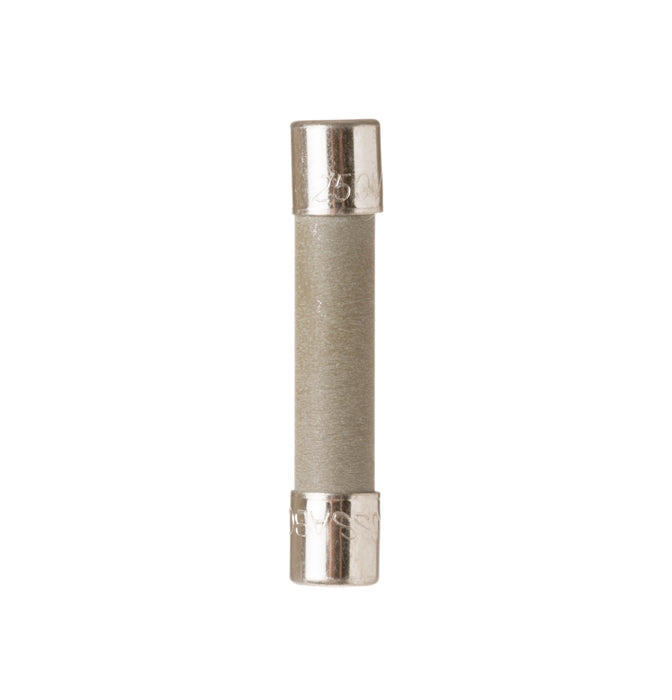

Whirlpool Range20A Fuse - WPM0805101

Whirlpool Microwave Line Fuse - WPM0805101

Restore the microwave power circuit with the correct line fuse with this genuine OEM Whirlpool Microwave Line Fuse - WPM0805101. A line fuse protects the microwave power circuit by opening if the electrical load exceeds the intended limit.

WPM0805101 is a genuine OEM Whirlpool microwave line fuse used when the original fuse opens, loses continuity, or is being replaced during diagnosis of a no-power condition. Replacing the fuse restores protection, but the underlying cause of the overload should also be identified.

Compatibility: Select Whirlpool-family microwave platforms that specify this exact OEM line fuse

Fitment / What To Verify: Verify the exact appliance model, fuse style, and any printed amp/voltage markings on the original fuse before ordering. Line fuses and thermal fuses are not interchangeable just because they appear similar.

This part commonly replaces previous part numbers including M0805101, W10246259, and various earlier service numbers.

Please confirm fitment with your appliance model number before ordering.

Is it time to replace?

• Common Symptoms: Microwave is completely dead, loses power suddenly, or fails continuity testing at the fuse.
• Visible/Sensory Cues: Open fuse, darkened fuse body, or visible damage discovered during diagnosis.

Pro Tip: A blown fuse usually indicates another issue. Check door-switch operation, wiring, and high-voltage component condition before installing the replacement.

Technical Specifications

Legacy part number(s)/code(s): Y0054121, Y0312794, 14204182, 14204376, 14207948, 14208889, 14225047, 3601-001198, 51001230, 51001303, 54001099, 57001067, 58001220, M0805101, R0713554, R9800424, WB27X10928

Please note: These legacy parts have been replaced by this item. They may not look exactly the same, but the manufacturer of these appliances has assured us that they will function properly.

If you have questions, please message us before ordering so we can address your concerns. Please review our Return Policy before purchasing.
