White-Rodgers Big Blue Programmable Touchscreen Thermostat, Up to 3 Heat / 2 Cool - 1F95-1277
Put a clear touchscreen at the center of home comfort. The White-Rodgers Big Blue 1F95-1277 combines a 12-square-inch touchscreen with flexible scheduling for compatible conventional and heat pump systems. Choose 7-day, 5+1+1-day or non-programmable operation to suit how you use the space.

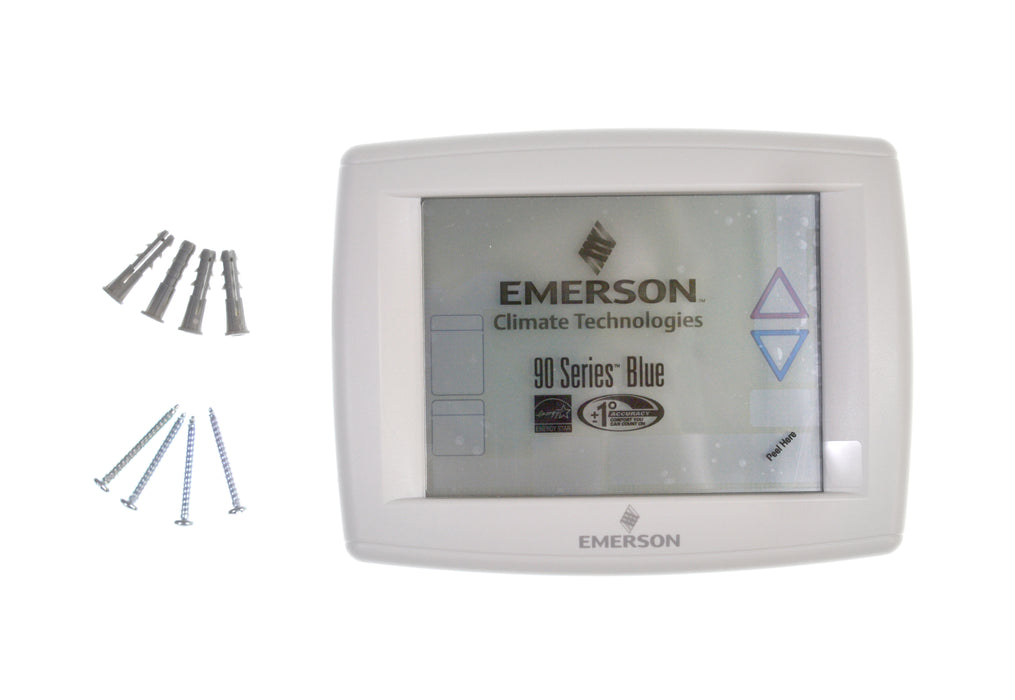

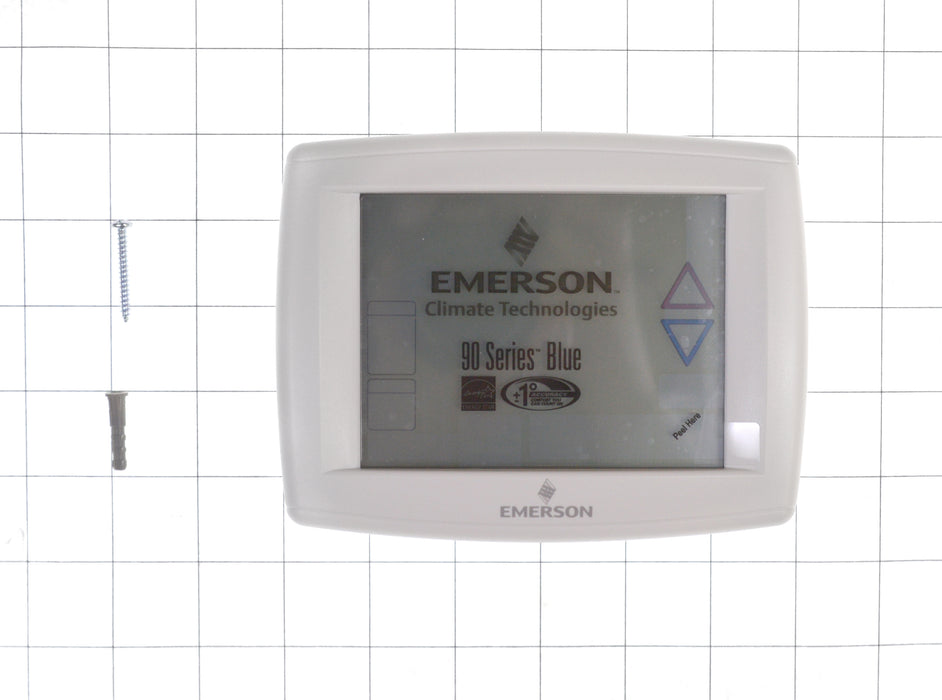

What you receive: One White-Rodgers 1F95-1277 Big Blue touchscreen thermostat.
System compatibility: Supports up to two heating and two cooling stages in conventional systems, or three heating and two cooling stages in compatible heat pump systems. Match the wiring and equipment requirements to the manual and configure the control for the installed system.
Installation: Match system voltage, heating and cooling stages, and terminal functions to the installation manual. Disconnect system power before wiring and have a qualified HVAC technician install and configure the control when needed.
Pro Tip: Display size is measured in square inches, not diagonally. Compare the thermostat footprint with the old control before planning wall touch-up.
Technical Specifications
| Part Number | 1F95-1277 |
|---|---|
| Brand | White-Rodgers Division |
| Product Type | Programmable touchscreen thermostat |
| Programming Options | 7-day, 5+1+1-day or non-programmable |
| Display Area | 12 square inches |
| Conventional Staging | Up to 2 heat / 2 cool |
| Heat Pump Staging | Up to 3 heat / 2 cool |
| Power | Battery or hardwire |
| Setpoint Range | 45-99 degrees F |
| Package Contents | One White-Rodgers 1F95-1277 Big Blue touchscreen thermostat. |
Brand
WHITE-RODGERS DIVISION
