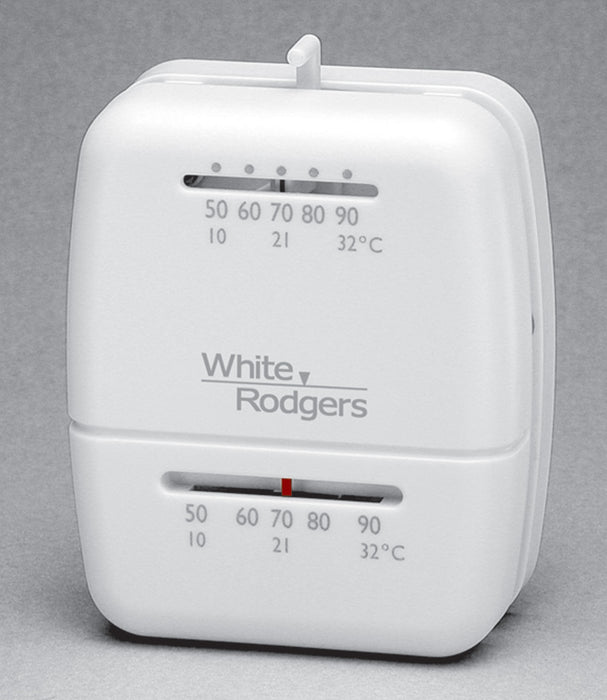

White-Rodgers Mechanical Heat-Only Thermostat, 24 V / Millivolt - 1C20-101
Set the heat with a straightforward mechanical control. White-Rodgers 1C20-101 is a vertical, heat-only room thermostat for compatible 24 V or millivolt systems. Its two-terminal R/W connection controls one heating stage, with a simple temperature adjustment suited to everyday manual operation. The lowest temperature position is OFF.
What you receive: One White-Rodgers 1C20-101 mechanical heat-only thermostat with F61-2499 wall mounting plate.
Installation: Match system voltage, heating and cooling stages, and terminal functions to the installation manual. Disconnect system power before wiring and have a qualified HVAC technician install and configure the control when needed.
Pro Tip: Label each wire by its existing terminal designation before disconnecting it. Wire color alone does not identify the correct connection.
Technical Specifications
| Part Number | 1C20-101 |
|---|---|
| Brand | White-Rodgers Division |
| Product Type | Mechanical heat-only thermostat |
| System Function | Heat only |
| Control Type | Mechanical |
| Stages | 1 heat / 0 cool |
| Orientation | Vertical |
| Electrical Application | 24 V or millivolt |
| Terminals | R, W |
| Programming | Non-programmable |
| Lowest Temperature Position | OFF |
| Included Wall Plate | F61-2499 |
| Package Contents | One White-Rodgers 1C20-101 mechanical heat-only thermostat with F61-2499 wall mounting plate. |
