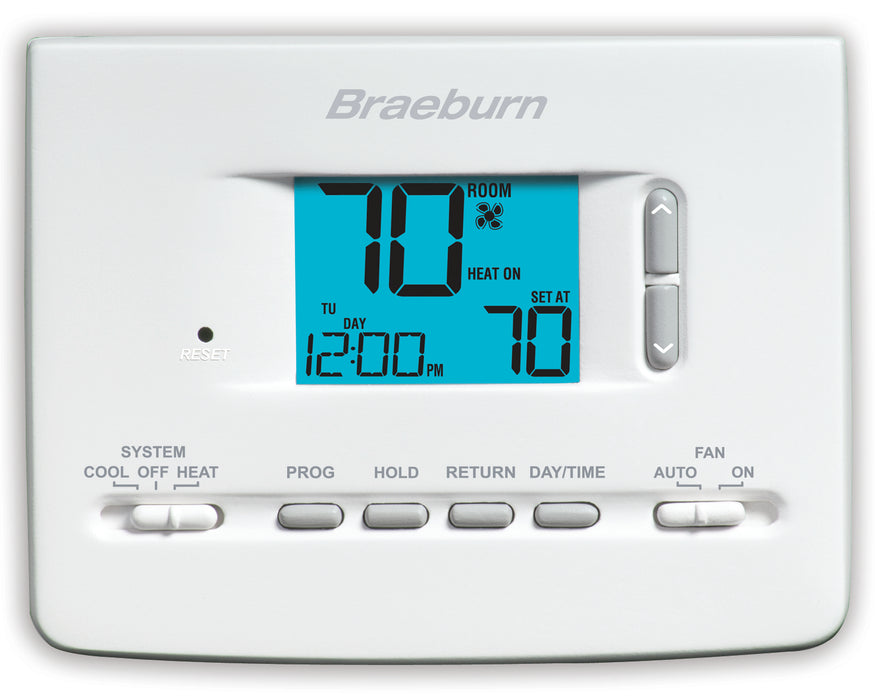

Braeburn Builder Programmable Thermostat, 1 Heat / 1 Cool - 2020NC
Put daily comfort on your schedule. The Braeburn 2020NC Builder thermostat provides one-stage heating and cooling control for compatible conventional or heat pump systems. Its blue-backlit, 2-square-inch display keeps the setting visible. Choose 7-day or 5-2 day scheduling, or use non-programmable operation.
What you receive: One Braeburn 2020NC thermostat.
Compatibility: Match the system type, one-heat/one-cool staging and wiring to the installation manual. Supports battery or hardwired operation. Heating and cooling changeover is manual.
Pro Tip: Photograph the old terminal connections and label each wire by its terminal designation before removal. Wire color alone does not establish the correct connection.
Technical Specifications
| Part Number | 2020NC |
|---|---|
| Brand | Braeburn |
| Product Type | Programmable Thermostat |
| Application | Programmable single-stage conventional / heat pump control |
| Stages | 1 heat / 1 cool |
| System Types | Compatible conventional and heat pump systems |
| Programming | 7-day, 5-2 day or non-programmable |
| Power | Battery or hardwire |
| Display Area | 2 square inches |
| Backlight | Blue |
| Terminals | Rc, Rh, W1, Y1, G, O, B, C |
| Automatic Changeover | No |
| Package Contents | One Braeburn 2020NC thermostat. |
