Whirlpool Front-Load Washer Drive Belt and Motor Isolator Kit - 12001788

Whirlpool Front-Load Washer Drive Belt and Motor Isolator Kit - 12001788

Replace a worn or broken drive belt on a compatible Maytag/Whirlpool-built front-load washer with this genuine drive belt and motor isolator kit. Belt slip or damage can interrupt drum rotation; deteriorated motor isolators can contribute to vibration and noise.

Compatibility: Select front-load washer and laundry models in the Maytag MAH14, MAH20, MAH21, MAH3000 and MAH5500 families when the model parts list specifies 12001788.

Compatible model examples: MAH14PNAEW, MAH3000AWW, MAH5500BWW. Model prefix examples are search aids; they do not guarantee every suffix fits.

Fitment / What to Verify: Verify the full washer model, belt path and pulley design, and motor isolator mounting arrangement. This is not a dryer belt and not suitable for direct-drive washers that have no belt.

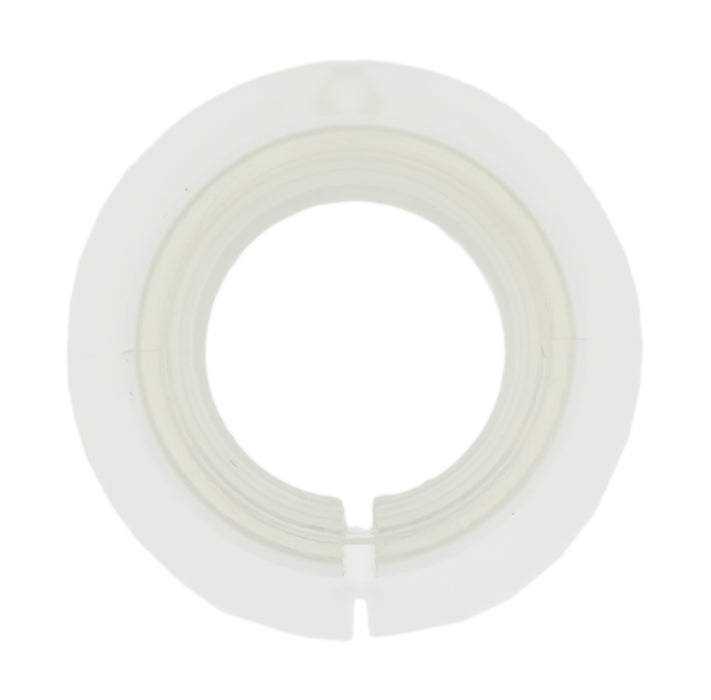

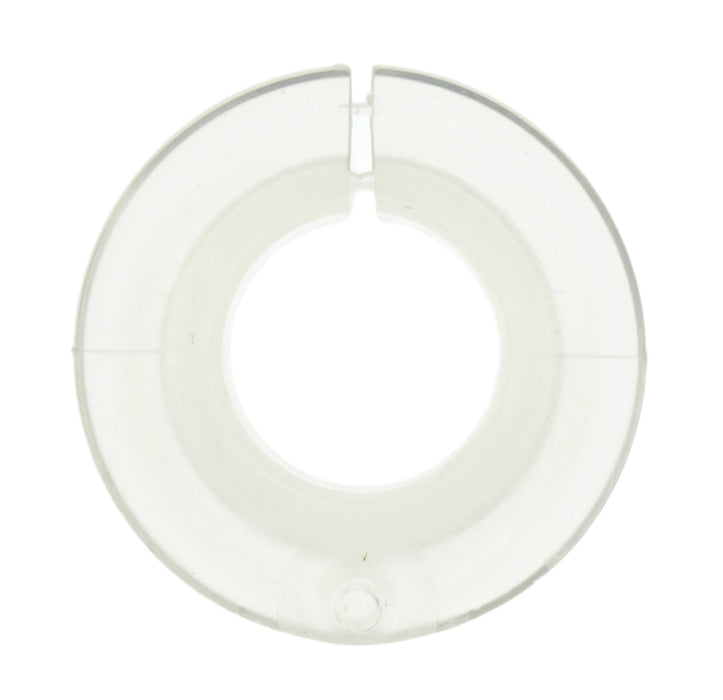

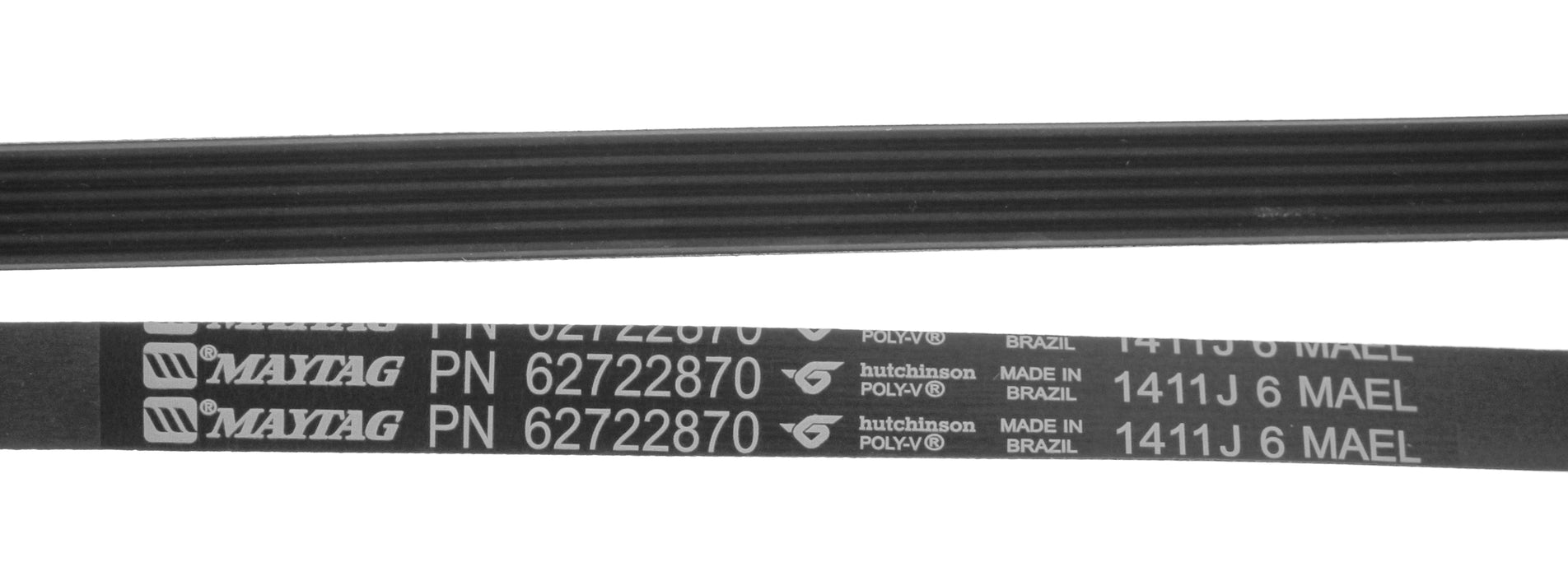

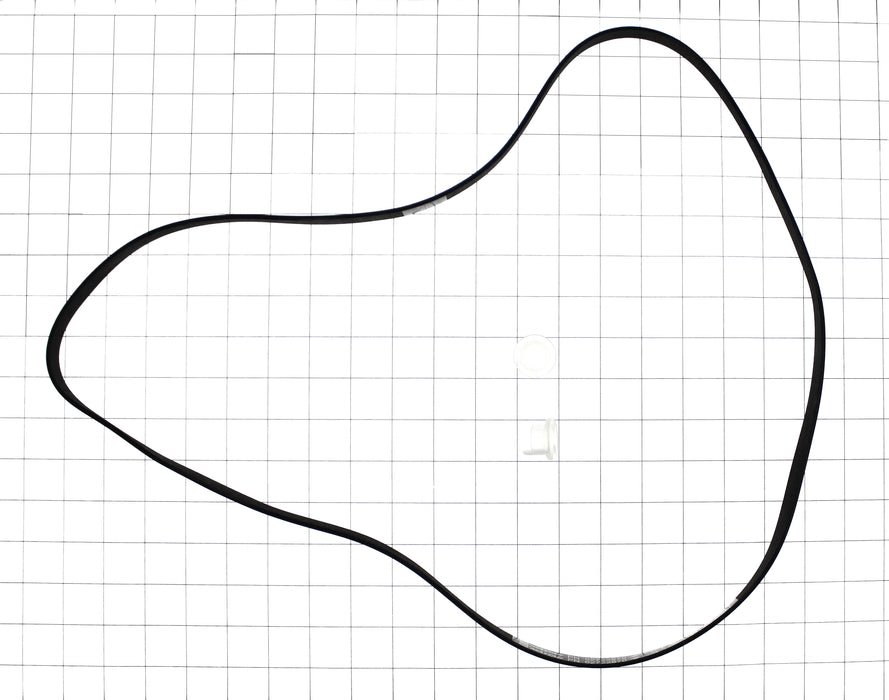

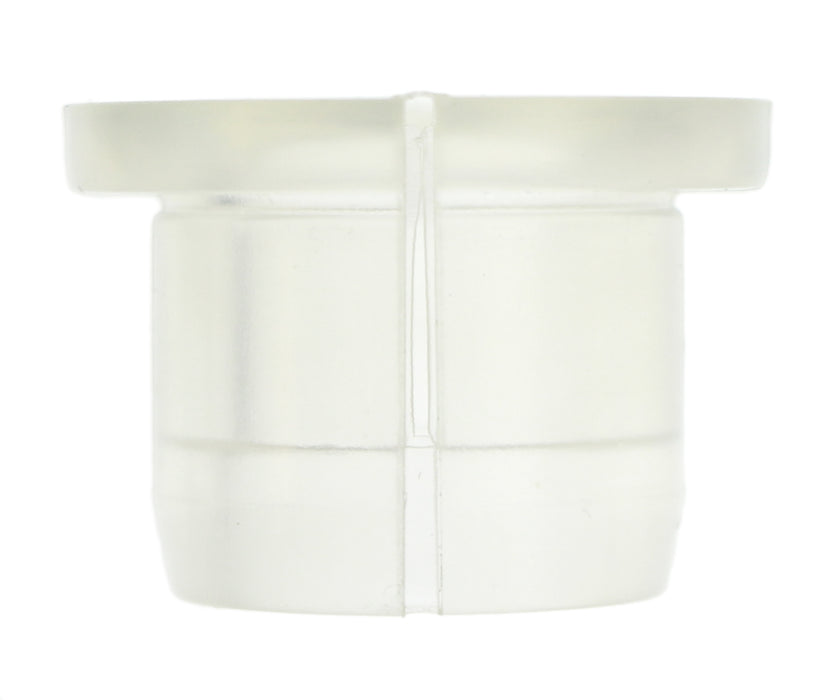

Included: Drive belt and two motor isolators.

Technical Specifications
