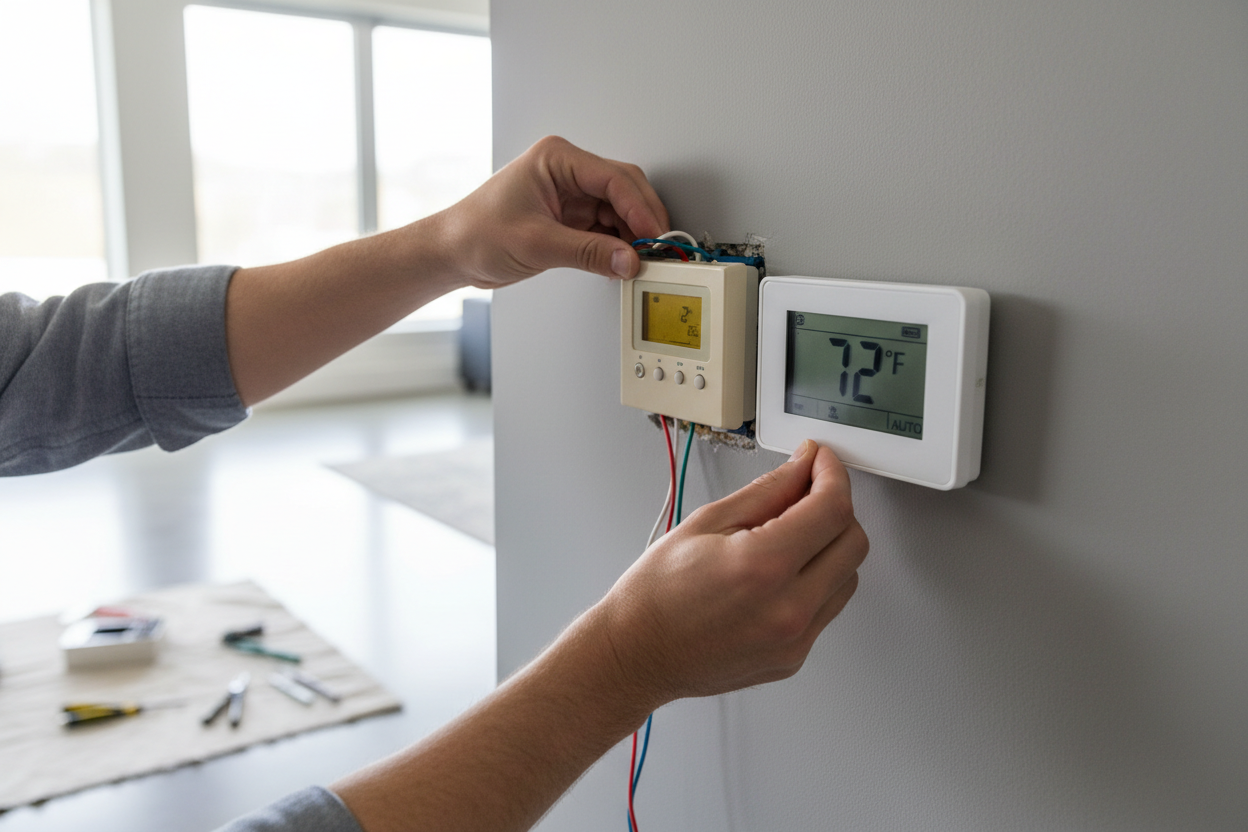

How to Replace an HVAC Thermostat: A Cautious DIY Guide

Replacing an HVAC thermostat may look like a simple home improvement project, but it is important to understand your system before removing the old thermostat or disconnecting any wires.

Many residential HVAC systems use low-voltage thermostat wiring, and some homeowners can successfully complete the replacement themselves. However, not every heating and cooling system is wired the same way. Heat pumps, multi-stage systems, proprietary communicating systems, and line-voltage thermostats may require additional knowledge or professional installation.

Before You Begin: Understand the Project

Do not remove your existing thermostat until you have confirmed that the replacement thermostat will work with your HVAC system.

Before starting, determine whether your system is:

• A conventional furnace and air conditioner system
• A heat pump system
• A single-stage or multi-stage system
• A dual-fuel system
• A zoned HVAC system
• A proprietary or communicating system
• A line-voltage heating system

You should also review the installation instructions for the new thermostat before disconnecting the old one. The number and type of thermostat wires you have can affect compatibility.

Signs You May Want to Replace Your Thermostat

• The display is blank or unresponsive
• The buttons or touchscreen no longer work properly
• The indoor temperature does not match the thermostat setting
• The heating or cooling system does not respond consistently
• The system runs longer than expected
• You want to upgrade to a programmable or Wi-Fi thermostat
• The thermostat is damaged, outdated, or difficult to operate

Keep in mind that thermostat problems can sometimes be caused by another issue, such as a tripped breaker, blown low-voltage fuse, loose wire, transformer problem, clogged air filter, or HVAC equipment failure.

What You Will Need

• A compatible replacement thermostat
• Phillips and flat-head screwdrivers
• A small precision screwdriver, if required
• Masking tape or wire labels
• A pen or fine-tip marker
• A smartphone or camera
• A pencil
• A level
• A drill and wall anchors, if new mounting holes are needed
• Fresh batteries, if required by the thermostat

How to Replace an HVAC Thermostat

Step 1: Confirm Compatibility

Check the new thermostat's compatibility information before beginning. Confirm that it supports your type of HVAC equipment, number of heating and cooling stages, and available wiring.

Some smart thermostats require a common wire, usually labeled C, for continuous power. Others may use an adapter or an alternative installation method. Do not assume a thermostat will work simply because it physically fits on the wall.

Step 2: Turn Off HVAC Power

Turn off power to the heating and cooling equipment at the appropriate circuit breaker or service disconnect.

Adjusting the thermostat to the off position is not the same as disconnecting power. The control wiring may still be energized unless the HVAC equipment has been shut off at the breaker or disconnect.

Step 3: Remove the Thermostat Cover

Carefully remove the front cover or display from the existing thermostat. Some models pull straight off, while others use clips or small screws.

Do not disconnect any wires yet.

Step 4: Photograph the Existing Wiring

Take several close-up photographs showing:

• Every connected wire
• The terminal letter for each wire
• Any jumper wires between terminals
• Unused wires tucked into the wall
• The complete thermostat base

Make sure the terminal labels are readable in at least one photo.

Step 5: Label Every Wire

Label each wire according to the terminal it is connected to, not according to the wire's color.

For example, a red wire may commonly connect to an R terminal, but previous installations do not always follow standard color conventions. The terminal letter is more important than the insulation color.

Common thermostat terminal labels may include:

• R, Rc, or Rh: Power
• C: Common wire
• Y or Y1: Cooling
• Y2: Second-stage cooling
• W or W1: Heating
• W2 or AUX: Second-stage or auxiliary heat
• G: Indoor fan
• O/B: Heat pump reversing valve
• E: Emergency heat

Terminal names and functions may vary. Always follow the wiring information provided by the thermostat and HVAC equipment manufacturers.

Step 6: Prevent the Wires From Falling Into the Wall

Once the wires are labeled, secure them before removing the old wall plate. You can wrap them around a pencil or carefully tape them to the wall.

Thermostat wires can easily slip into the wall cavity, making the project significantly more difficult.

Step 7: Disconnect the Old Thermostat

Release or loosen one wire at a time. Take another photograph after the wires have been disconnected but before removing the old wall plate.

Work slowly and avoid allowing bare wire ends to touch each other.

Step 8: Install the New Wall Plate

Remove the old thermostat base and position the new wall plate. Use a level before marking any new mounting holes.

If the new thermostat does not cover marks or unpainted areas left by the previous thermostat, a compatible trim plate may be available.

Step 9: Connect the Wires

Connect each labeled wire to the corresponding terminal on the new thermostat.

Do not automatically match wires by color. Follow:

1. The labels you placed on the wires
2. The photographs of the original installation
3. The new thermostat's installation guide
4. The HVAC system's wiring information, when available

After inserting each wire, gently tug it to confirm that it is secure. Make sure excess bare copper is not exposed outside the terminal.

Step 10: Mount and Configure the Thermostat

Attach the thermostat display or cover to the new wall plate. Install batteries if the thermostat requires them.

Many thermostats require setup information before they will operate correctly. You may need to select:

• Conventional system or heat pump
• Gas, electric, oil, or other heat type
• Number of heating stages
• Number of cooling stages
• Reversing valve operation
• Fan control settings

Incorrect configuration may cause improper system operation even when the wires are connected correctly.

Step 11: Restore Power and Test the System

Restore power at the breaker or service disconnect. Follow the thermostat manufacturer's startup instructions.

Test one function at a time:

• Indoor fan
• Cooling
• Heating
• Auxiliary or emergency heat, when applicable
• Programmable or smart features

Some HVAC systems include a built-in delay before starting. Allow several minutes before assuming something is wrong.

Common DIY Thermostat Mistakes

Does a Smart Thermostat Require a C-Wire?

Many Wi-Fi and smart thermostats require continuous electrical power. A common wire, usually connected to the C terminal, provides a return path for that power.

Some thermostats can operate without a C-wire, while others use a power adapter or accessory module. Always verify the manufacturer's requirements before purchasing.

Do not connect an unused wire to the C terminal at the thermostat unless you have confirmed that the same wire is properly connected at the HVAC control board.

Frequently Asked Questions

Can I replace an HVAC thermostat myself?

Some homeowners can replace a standard low-voltage thermostat themselves. The project becomes more complex with heat pumps, multi-stage systems, communicating controls, missing common wires, and line-voltage equipment.

Should I turn off the breaker before replacing a thermostat?

Yes. Turn off power to the HVAC equipment at the breaker or service disconnect before removing or reconnecting thermostat wires.

Can incorrect thermostat wiring damage my HVAC system?

Incorrect wiring can blow a low-voltage fuse, prevent the system from operating, create incorrect heating or cooling calls, or potentially damage controls. Stop and verify the wiring if anything does not match the instructions.

Why should I photograph the wiring?

Photographs create a visual record of the original terminal connections, jumper positions, wire colors, and unused wires. They are much more reliable than trying to remember the arrangement later.

What if my new thermostat has different terminal labels?

Do not guess. Review the installation guide and the HVAC system wiring diagram. Some terminals serve different functions depending on whether the system is conventional or a heat pump.

How long does thermostat replacement take?

A straightforward replacement may take less than an hour, but unfamiliar wiring, wall repairs, equipment setup, or compatibility questions can make the project take longer. Give yourself enough time to work carefully without rushing.

Choosing the Right Replacement Thermostat

Before purchasing, confirm the thermostat supports your HVAC system and the features you need. Common thermostat types include:

• Non-programmable thermostats
• Programmable thermostats
• Wi-Fi and smart thermostats
• Heat pump thermostats
• Multi-stage thermostats
• Commercial thermostats
• Line-voltage thermostats

Check the existing thermostat terminals and the HVAC model information before ordering. When possible, review the installation manual for both the replacement thermostat and the HVAC equipment.

Final Thoughts

Replacing an HVAC thermostat can be a manageable project, but it should not be approached casually. The most important steps happen before the first wire is removed.

Confirm compatibility, read the instructions, shut off power, photograph the existing installation, label every wire, and work slowly. Take additional pictures throughout the project so you have a clear record of each step.

If the wiring, system type, or thermostat configuration does not make sense, stop before restoring power and contact a qualified HVAC professional. Knowing when to pause is an important part of completing any DIY project safely.

This article provides general educational information only. HVAC equipment, thermostat wiring, and electrical requirements vary by system. Always follow the instructions provided by the thermostat and HVAC equipment manufacturers and consult a qualified professional when necessary.
